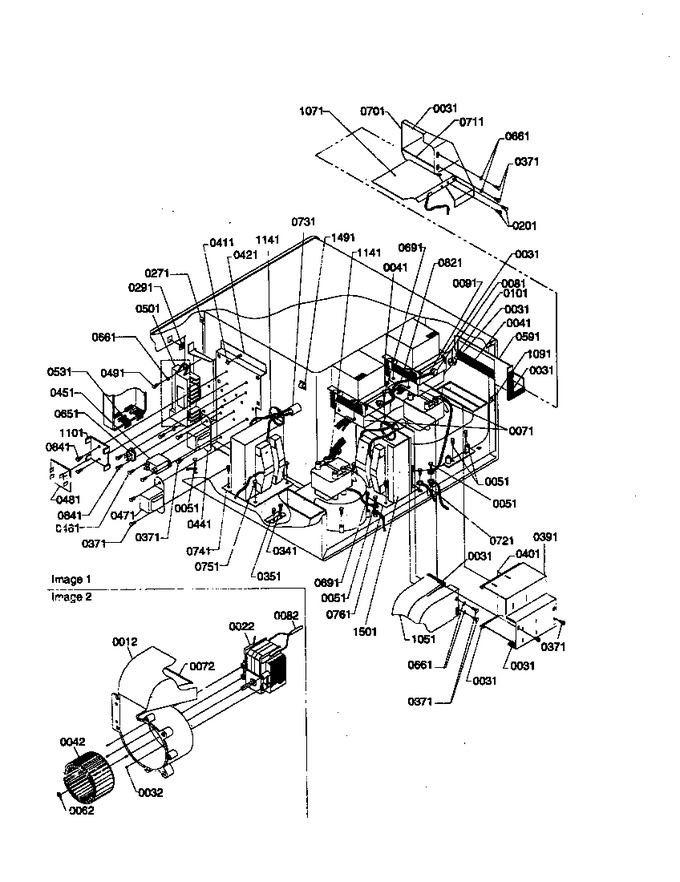

SELECT A DIAGRAM

01 - Back Panel Assy


02 - Cavity Assy


03 - Contol Panel & Shelf Assy


04 - Door Assy


05 - Interior Electrical & Related Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	45559P01		Housing, Blower		Appelez-nous	-
22	R0163291		Kit, Blower Motor		Appelez-nous	-
31	A3030302		Gasket		Appelez-nous	-
32	M1D888		Screw K		Appelez-nous	-
41	A3030361		Gasket		Appelez-nous	-
42	36300P01		Wheel, Blower M35d39		Appelez-nous	-
51	5078-CC		Screw		Appelez-nous	-
62	Y00000000		See Note E-ring		Appelez-nous	-
71	10489403		Magnetron		Appelez-nous	-
72	10825601		Divider, Duct		Appelez-nous	-
81	1751802501		Protector,thermal 180c 25 Amp		Appelez-nous	-
82	12075801		Sleeve		Appelez-nous	-
91	M0251717		Screw		Appelez-nous	-
101	35691P01 S		Nut-magt		Appelez-nous	-
201	5039-T		.187 Dia Push Rivet		Appelez-nous	-
271	42365P01		U-clip		Appelez-nous	-
291	5072-D		No.8-32 Captive Nut(25)		Appelez-nous	-
341	5067-A		.187 Dia Pop Rivet Steel		Appelez-nous	-
351	45537P01		Clip, Blower Mtg		Appelez-nous	-
371	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
391	45751P03		Duct, Housing		Appelez-nous	-
401	45752P03		Duct Divider		Appelez-nous	-
411	WP488130		Nut   (Replaces: M0282007)				$ 6.27
421	10791901		Panel, Component		Appelez-nous	-
441	45507P01		Lv Xfmr Fs10 117v60hz 8``		Appelez-nous	-
451	38806P01		Relay		Appelez-nous	-
461	5074-DD		Screw K		Appelez-nous	-
471	42604P01		Xfmr-auto		Appelez-nous	-
481	10791801		Board, P.c.		Appelez-nous	-
491	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
501	4002006801		Svc Interlock Switch Asy		Appelez-nous	-
531	4520400703		Assy, Connector		Appelez-nous	-
591	45753P01		Transition-cav Exh Fs-10		Appelez-nous	-
651	12QBP0508		Kit, Triac Assy   (Replaces: R0157373)				$ 27.14
661	Y00000000		See Note No.8 Flat Washer		Appelez-nous	-
691	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.17
701	45407P01		M65d345 Duct, Air		Appelez-nous	-
711	45402P01		M65d346 Divider Air		Appelez-nous	-
721	39126P01		Cable Clip		Appelez-nous	-
731	12075801		Sleeve		Appelez-nous	-
741	45602P01		Clip, Transformer		Appelez-nous	-
751	5018-JJ		No.10 T X 3/8`` Screw		Appelez-nous	-
761	10788605		Transformer-hv		Appelez-nous	-
821	4229913003		Ld		Appelez-nous	-
841	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1051	46385P01		Duct Assembly		Appelez-nous	-
1071	46762P01		Deflector-air M65d344		Appelez-nous	-
1091	5147-ZZ		U-clip		Appelez-nous	-
1101	10741801		Bracket, P.c. Board		Appelez-nous	-
1141	M0321204		Wire Tie		Appelez-nous	-
1491	M0104102		Clip, Cord				$ 8.10
1501	12065001		Barrier-thermal		Appelez-nous	-
NI	10798701		Harness, Oven		Appelez-nous	-
