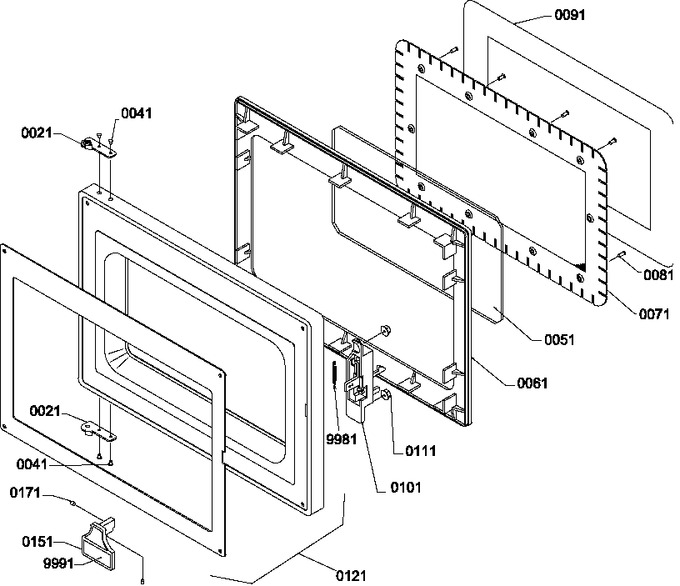

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	R0163252		Hinge Asy Kit		Appelez-nous	-
41	46139P01		Rivet .125 Dia Zinc		Appelez-nous	-
51	M70D246		Outer Window Kit		Appelez-nous	-
61	M55D18		Door Filler Kit		Appelez-nous	-
71	R0163255		Inner Door Kit		Appelez-nous	-
81	WP8281236		No.8 Ab X 3/8`` Screw   (Replaces: 5149-V)				$ 6.80
91	10785001		Window, Inner Door		Appelez-nous	-
101	R0163256		Door Latch Kit		Appelez-nous	-
111	5015-T		No.10-24 Flange Whiz-lk Nut		Appelez-nous	-
121	R0163257		Outer Door Assy.		Appelez-nous	-
151	12066802		Door Handle-e Ct		Appelez-nous	-
171	5051032202		Set Screw No.10 X .25		Appelez-nous	-
9981	412058P01		Spring-latch		Appelez-nous	-
9991	10805820		Insert-handle		Appelez-nous	-
