SELECT A DIAGRAM

01 - Blower/controls


02 - Electrical


03 - Light/door


04 - Rear Access Panel


05 - Shelf/stirrer Motor

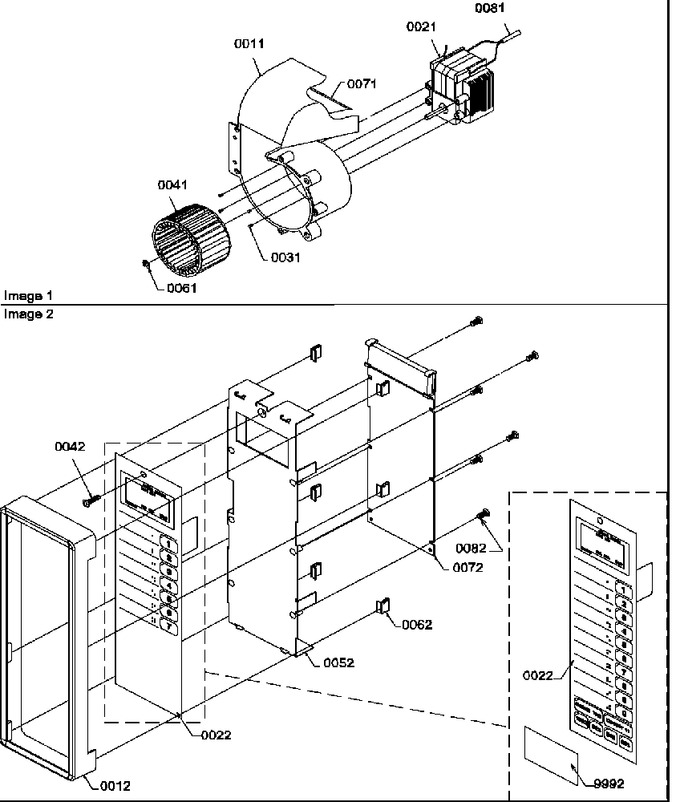

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	45559P01		Housing, Blower		Appelez-nous	-
12	45398P04		Frame, Cont Pnl		Appelez-nous	-
21	R0163291		Kit, Blower Motor		Appelez-nous	-
22	4100010317		Assy Memb Switch				$ 82.67
31	M1D888		Screw K		Appelez-nous	-
41	36300P01		Wheel, Blower M35d39		Appelez-nous	-
42	5149-P		Screw,no.8-32 X 1-1/4 Fl Hd Scre		Appelez-nous	-
52	4180001602		Backer Plt Asy		Appelez-nous	-
61	Y00000000		See Note E-ring .219 Shaft		Appelez-nous	-
62	5522546002		Clip		Appelez-nous	-
71	M65D277		Housing Blower, Kit		Appelez-nous	-
72	10987104		Board, P.c.		Appelez-nous	-
81	12075801		Sleeve		Appelez-nous	-
82	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
9992	46508P04		Pow Btn Cvr Alum/black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
