Diagram # Part Number Description Series Availability Ships Price Add to Cart
22 R0163252 Hinge Asy Kit Appelez-nous -
42 46139P01 Rivet .125 Dia Zinc Appelez-nous -
52 M70D246 Outer Window Kit Appelez-nous -
62 M55D18 Door Filler Kit Appelez-nous -
72 R0163255 Inner Door Kit Appelez-nous -
82 WP8281236 No.8 Ab X 3/8`` Screw   (Replaces: 5149-V) Special Order $ 6.80

92 10785001 Window, Inner Door Appelez-nous -
102 R0163256 Door Latch Kit Appelez-nous -
112 5015-T No.10-24 Flange Whiz-lk Nut Appelez-nous -
122 R0163257 Outer Door Assy. Appelez-nous -
152 12066802 Door Handle-e Ct Appelez-nous -
171 32383P01 Wshr-rubber Appelez-nous -
172 5051032202 Set Screw No.10 X .25 Appelez-nous -
311 M0288120 Speed Nut Appelez-nous -
361 4520500504 Fire Sensor Assy Appelez-nous -
371 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

411 2040100701 Socket Lamp Appelez-nous -
481 W11233072 Screw   (Replaces: M0214931) In-Stock Immediately $ 12.62

581 4180032601 Assy, Hinge Appelez-nous -
591 45540P01 Shim-hinge Appelez-nous -
601 5149-C No.8-32 Pan Hd Mach Scr (25) Appelez-nous -
641 2031415101 M9d107 Lamp Appelez-nous -
991 10785601 Cover Light (ss) Appelez-nous -
1051 45412P01 Filter Air Appelez-nous -
1181 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.26

9982 41205P01 Spring, Door Appelez-nous -
9992 10805832 Insert-handle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

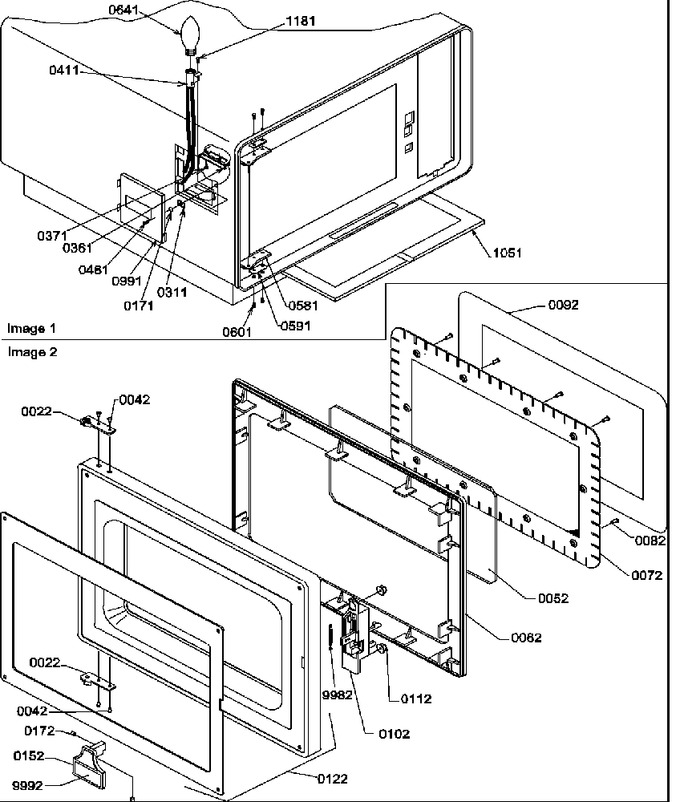

Diagram for FS20 (BOM: P1302106M)
