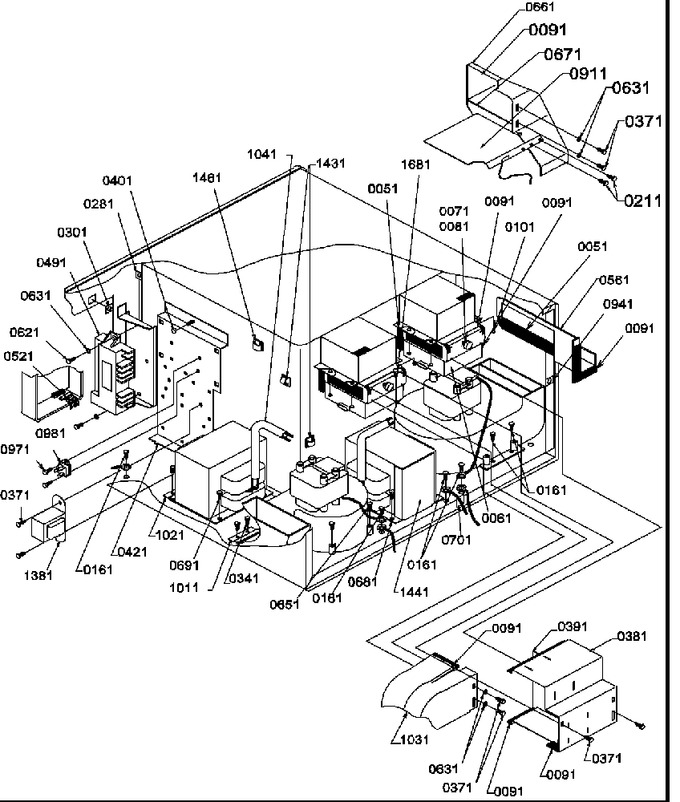

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | A3030361 | Gasket |
|
- | |||||
| 61 | 10489403 | Magnetron |
|
- | |||||
| 71 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 81 | M0251717 | Screw |
|
- | |||||
| 91 | A3030302 | Gasket |
|
- | |||||
| 101 | 35691P01 S | Nut-magt |
|
- | |||||
| 161 | 5078-CC | Screw |
|
- | |||||
| 211 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 281 | 42365P01 | U-clip |
|
- | |||||
| 301 | 5072-D | No.8-32 Captive Nut(25) |
|
- | |||||
| 341 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 371 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 381 | 45751P03 | Duct, Housing |
|
- | |||||
| 391 | 45752P03 | Duct Divider |
|
- | |||||
| 401 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 421 | 10791901 | Panel, Component |
|
- | |||||
| 491 | 4002006801 | Svc Interlock Switch Asy |
|
- | |||||
| 521 | 12162201 | Harness, Oven |
|
- | |||||
| 561 | 45753P01 | Transition-cav Exh Fs-10 |
|
- | |||||
| 621 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.20 | |||||
| 631 | Y00000000 | See Note No.8 Flat Washer |
|
- | |||||
| 651 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.17 | ||||
| 661 | 45407P01 | M65d345 Duct, Air |
|
- | |||||
| 671 | 45402P01 | M65d346 Divider Air |
|
- | |||||
| 681 | 10788605 | Transformer-hv |
|
- | |||||
| 691 | 5018-JJ | No.10 T X 3/8`` Screw |
|
- | |||||
| 701 | M0110505 | Clip-cable |
|
- | |||||
| 911 | 46762P01 | Deflector-air M65d344 |
|
- | |||||
| 941 | 5147-ZZ | U-clip |
|
- | |||||
| 971 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 981 | 12QBP0508 | Kit, Triac Assy (Replaces: R0157373) |
|
$ 27.14 | |||||
| 1011 | 45537P01 | Clip, Blower Mtg |
|
- | |||||
| 1021 | 45602P01 | Clip, Transformer |
|
- | |||||
| 1031 | 46385P01 | Duct Assembly |
|
- | |||||
| 1041 | 12075801 | Sleeve |
|
- | |||||
| 1381 | 42604P01 | Xfmr-auto |
|
- | |||||
| 1431 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 1441 | 12065001 | Barrier-thermal |
|
- | |||||
| 1461 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 1681 | M0218136 | Screw |
|
- |
