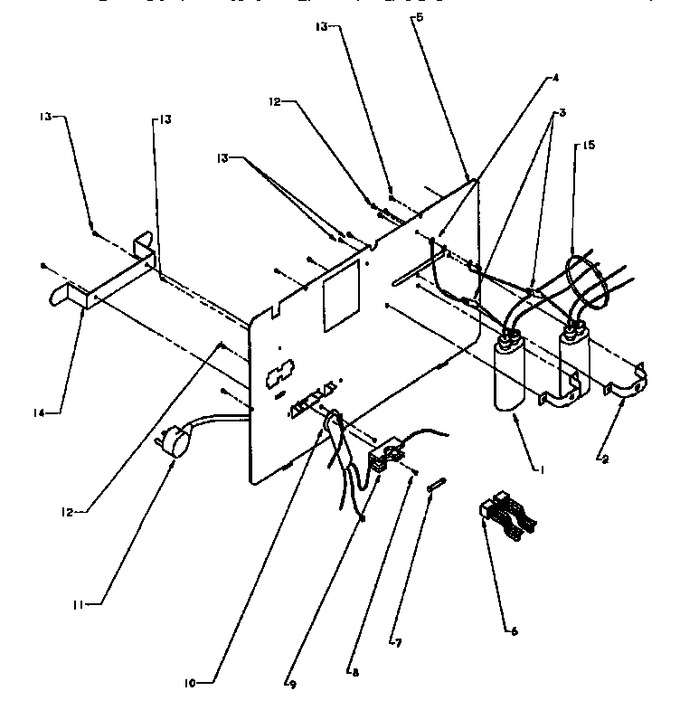

01 - Back Panel & Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Eleccompnt & Related Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D8547930 | Capacitor-.65 |
|
- | |||||
| 2 | 10825501 | Bracket |
|
- | |||||
| 3 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 4 | Y00000000 | See Note Nut-keps, Hex |
|
- | |||||
| 5 | 10794702 | Panel, Back Access |
|
- | |||||
| 6 | 10798801 | Harness, Oven |
|
- | |||||
| 7 | 36107P01 | Fuse |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 9 | 10091101 | Fuse Holder |
|
- | |||||
| 10 | M0370010 | Relief, Strain |
|
- | |||||
| 11 | 1732500101 | Cord, Power (300v) |
|
- | |||||
| 12 | 5072-V | Screw K |
|
- | |||||
| 13 | 5027-ZZ | Screw |
|
- | |||||
| 14 | 45531P01 | Brkt, Cord Wrap |
|
- | |||||
| 15 | 5140-FF | Tie-elect. |
|
- |
