01 - Back Panel & Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy

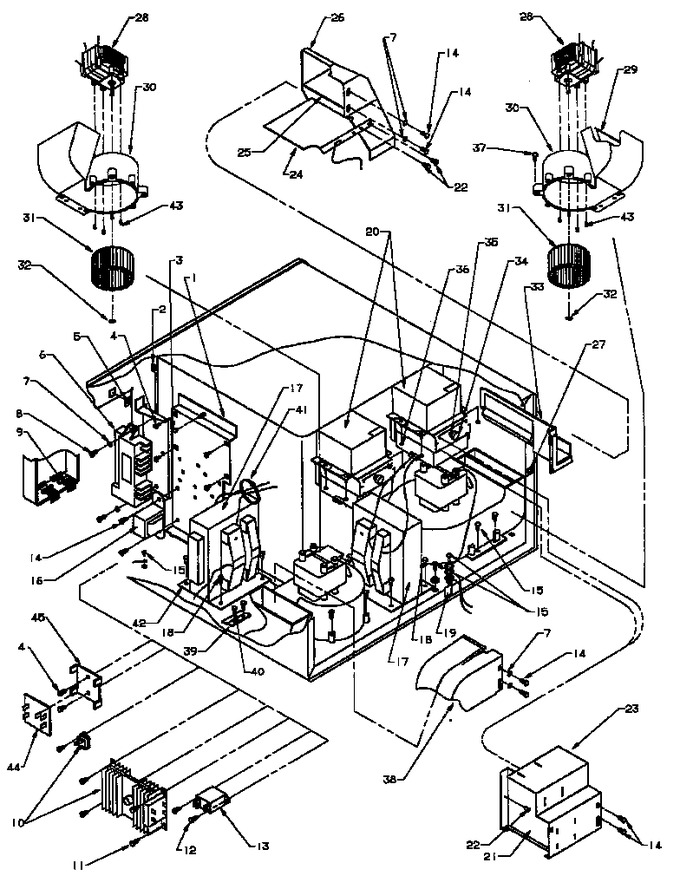

05 - Interior Eleccompnt & Related Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10791901 | Panel, Component |
|
- | |||||
| 2 | 42365P01 | U-clip |
|
- | |||||
| 3 | Y00000000 | See Note Nut-keps, Hex |
|
- | |||||
| 4 | Y00000000 | See Note Tinnerman Nut |
|
- | |||||
| 5 | 5072-D | No.8-32 Captive Nut(25) |
|
- | |||||
| 6 | 4002006801 | Svc Interlock Switch Asy |
|
- | |||||
| 7 | Y00000000 | See Note Washer-flat |
|
- | |||||
| 8 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.20 | |||||
| 9 | 4520400703 | Assy, Connector |
|
- | |||||
| 10 | D7681501 | Triac |
|
$ 44.05 | |||||
| 11 | 5042-B | Screw, Sm |
|
- | |||||
| 12 | 45751P03 | Duct, Housing |
|
- | |||||
| 12 | 5074-DD | Screw K |
|
- | |||||
| 13 | 38806P04 | Relay |
|
- | |||||
| 14 | 5027-ZZ | Screw |
|
- | |||||
| 15 | 5078-CC | Screw |
|
- | |||||
| 16 | 45507P01 | Lv Xfmr Fs10 117v60hz 8`` |
|
- | |||||
| 17 | 10133702 | Transformer |
|
- | |||||
| 18 | 5018-JJ | No.10 T X 3/8`` Screw |
|
- | |||||
| 19 | 39126P01 | Cable Clip |
|
- | |||||
| 20 | 10794401 | Magnetron |
|
- | |||||
| 22 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 24 | 46762P01 | Deflector-air M65d344 |
|
- | |||||
| 25 | 45402P01 | M65d346 Divider Air |
|
- | |||||
| 26 | 45407P01 | M65d345 Duct, Air |
|
- | |||||
| 27 | 5147-ZZ | U-clip |
|
- | |||||
| 28 | 2010000701 | Blower Motor 120v 60 |
|
- | |||||
| 29 | 10825601 | Divider, Duct |
|
- | |||||
| 30 | 45559P01 | Housing, Blower |
|
- | |||||
| 31 | 36300P01 | Wheel, Blower M35d39 |
|
- | |||||
| 32 | Y00000000 | See Note E-ring |
|
- | |||||
| 33 | 45753P01 | Transition-cav Exh Fs-10 |
|
- | |||||
| 34 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 35 | M0251717 | Screw |
|
- | |||||
| 36 | 35691P01 | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 37 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.17 | ||||
| 38 | 46385P01 | Duct Assembly |
|
- | |||||
| 39 | 45537P01 | Clip, Blower Mtg |
|
- | |||||
| 40 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 41 | 5140-FF | Tie-elect. |
|
- | |||||
| 42 | 45602P01 | Clip, Transformer |
|
- | |||||
| 43 | 5072-V | Screw K |
|
- | |||||
| 44 | 10791801 | Board, P.c. |
|
- | |||||
| 45 | 10741801 | Bracket, P.c. Board |
|
- |
