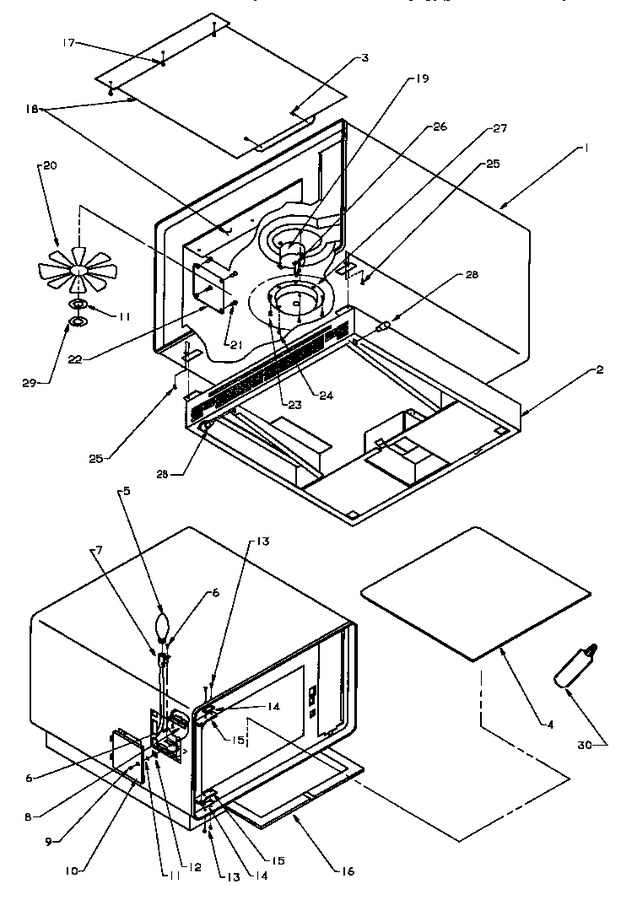

SELECT A DIAGRAM

01 - Back Panel & Components


02 - Cavity Assy


03 - Control Panel Assy


04 - Door Assy


05 - Interior Eleccompnt & Related Mtg Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0163264		Cavity		Appelez-nous	-
1	M77D177		Cavity Asy Gray Kit		Appelez-nous	-
1	94392P01		Cavity Asy M77d148 Fs10		Appelez-nous	-
2	R0163258		Kit, Base		Appelez-nous	-
3	5039-T		.187 Dia Push Rivet		Appelez-nous	-
4	R0156904		Kit, Shelf		Appelez-nous	-
5	2031415101		M9d107 Lamp		Appelez-nous	-
6	5027-ZZ		Screw		Appelez-nous	-
7	2040100701		Socket Lamp		Appelez-nous	-
8	4520500504		Fire Sensor Assy		Appelez-nous	-
9	5042-B		Screw, Sm		Appelez-nous	-
10	10785605		Cover Light (gray)		Appelez-nous	-
11	32383P01		Wshr-rubber		Appelez-nous	-
12	5072-D		No.8-32 Captive Nut(25)		Appelez-nous	-
13	5149-C		No.8-32 Pan Hd Mach Scr (25)		Appelez-nous	-
14	45540P01		Shim-hinge		Appelez-nous	-
15	4180032601		Assy, Hinge		Appelez-nous	-
16	45412P01		Filter Air		Appelez-nous	-
17	Y00000000		See Note Speed-clinch		Appelez-nous	-
18	45422P01		Stirrer Cover		Appelez-nous	-
19	R0163259		Kit, Stirrer Motor		Appelez-nous	-
20	M35D53		Kit, Stirrer Blade		Appelez-nous	-
21	42192P01		Rivet-plastcx		Appelez-nous	-
22	2570000202		Lamp Lens		Appelez-nous	-
23	5078-CC		Screw		Appelez-nous	-
24	5001-ZZ		No.4-40 Pan Hd Mach Scr		Appelez-nous	-
25	5067-A		.187 Dia Pop Rivet Steel		Appelez-nous	-
26	24597P01		Gasket		Appelez-nous	-
27	45437P01		Support Mtr		Appelez-nous	-
28	5571173001		Standoff, Filter Guide		Appelez-nous	-
29	WP3195558		Pushnut   (Replaces: 5147-V)				$ 7.68
30	W10841140		Sealer   (Replaces: M0275598)			Immediately	$ 24.92
