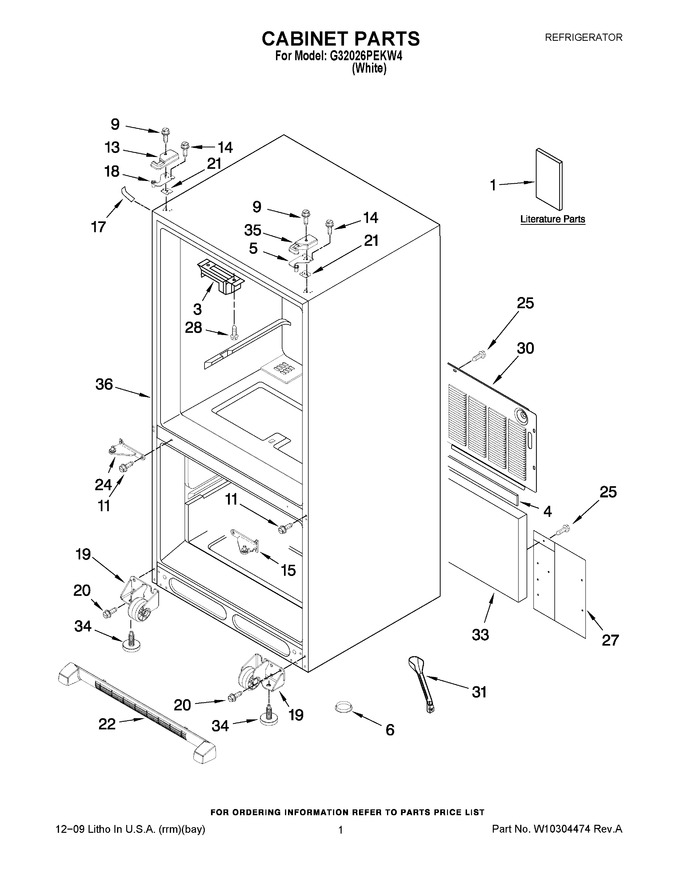

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 1 | W10279341 | Tech Sheet |
|
- | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.04 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | WP12566606ED | Hinge, Top Right (Replaces: 12566604ED) |
|
Immediately | $ 40.40 | ||||
| 6 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.47 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 12.62 | |||||
| 13 | W10177766 | Cover, Left Hinge (white) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 7.09 | ||||
| 15 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 137.99 | |||||
| 17 | 12587703W | Cover, Corner White |
|
$ 19.63 | |||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566605ED) |
|
$ 78.08 | |||||
| 19 | W11820445 | Bracket, Foot (2) (right) (Replaces: W10275849) |
|
Immediately | $ 32.01 | ||||
| 19 | W11820444 | Bracket, Foot (2) (left) (Replaces: W10275850) |
|
Immediately | $ 32.01 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 6.92 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534154 | Grille, Toe (white) (Replaces: W10244559) |
|
$ 131.71 | |||||
| 24 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 83.93 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 6.26 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 18.31 | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 6.85 | ||||
| 30 | W10212203 | Cover, Unit |
|
- | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 38.15 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 35 | 12684202W | Cover, Right Hinge (white) |
|
- | |||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
