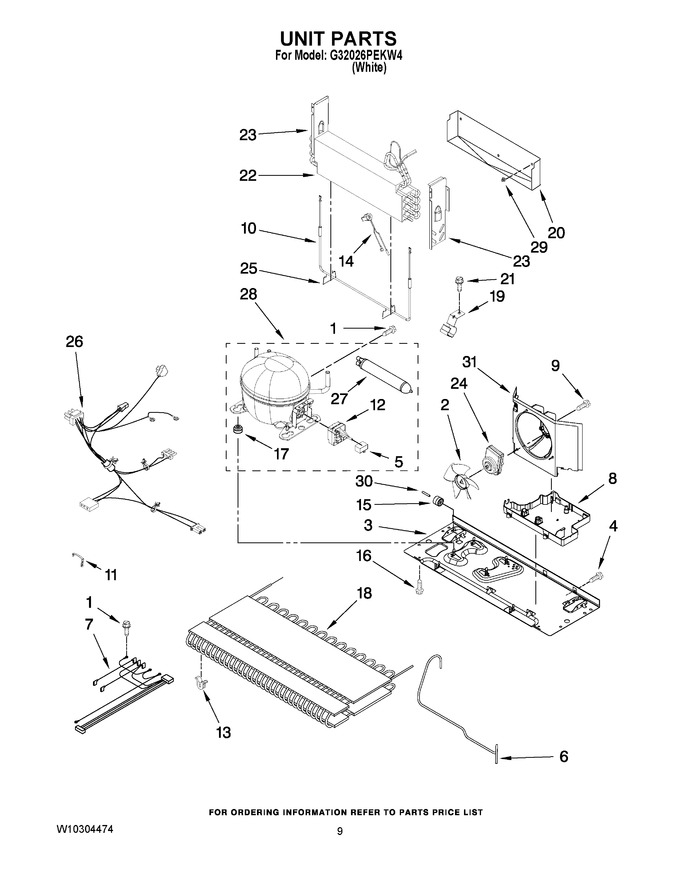

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 67.61
3	W11727651		Basepan   (Replaces: W10210985)				$ 94.76
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.26
5	2321245		Capacitor		Appelez-nous	-
6	W10286438		Tube, Discharge		Appelez-nous	-
7	W10280429		Harness, Evap Heater		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 89.13
9	WP67006908		Screw   (Replaces: 12991001)			Immediately	$ 7.16
10	12729132		Heater, Defrost		Appelez-nous	-
11	2302129		Strap, Bale		Appelez-nous	-
12	WP2312007		Start Device   (Replaces: 2312007)				$ 162.59
13	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 7.51
14	W11084905		Thermostat, Defrost   (Replaces: 12639322SP)		Appelez-nous	-
15	12477102		Roller (2)			Immediately	$ 6.64
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 6.47
18	WPW10346420		Condenser   (Replaces: W10135027)				$ 252.31
19	10547003		Clip, Drier		Appelez-nous	-
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 48.87
21	WP33001882		Screw   (Replaces: 12990701)				$ 71.75
22	12002041		Evaporator   (Replaces: 12726403)				$ 313.77
23	12225702		Dam (right Side)				$ 14.09
23	12225602		Dam (left) Side)				$ 14.66
24	WPW10246191		Motor, Fan   (Replaces: 12825102)				$ 272.05
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 127.01
26	W10234312		Harness, Unit With Power Cord		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 27.70
28	W10183407		Compressor (includes Items 11,12,17,27)   (Replaces: W10223234)				$ 373.37
29	10623002		Clip, Evaporator				$ 10.38
30	67006434		Axle, Roller (2)   (Replaces: 12477202)			Immediately	$ 6.77
31	W10189187		Shroud		Appelez-nous	-
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 115.28
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 19.48
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 117.64
NI	876764		Valve, Access(3/16``)			Immediately	$ 82.22
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
