01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)

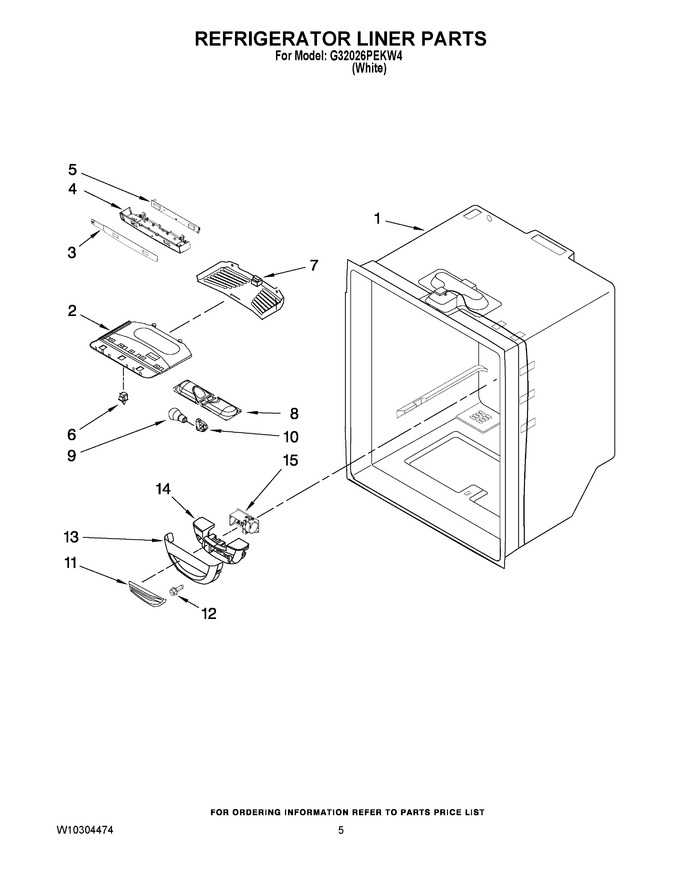

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12806302		Bracket, Control And Lights		Appelez-nous	-
3	12816517		Keyboard		Appelez-nous	-
4	WPW10464769		Housing, Control   (Replaces: 12806406)				$ 97.51
5	WPW10708492		Board, Control   (Replaces: 12868515)				$ 227.72
6	W11384469		Switch, Light (2)   (Replaces: C3680310V)			Immediately	$ 33.51
7	W11284721		Cover, Light   (Replaces: 12806501)				$ 90.87
8	12806601		Housing, Light   (Replaces: 12806601V)				$ 94.46
9	WP67002552		Bulb, Light (2)   (Replaces: A0282808V)			Immediately	$ 10.58
10	W11447232		Socket, Light (2)   (Replaces: W10134764V)			Immediately	$ 11.89
11	67003900		Insert, Damper Cover   (Replaces: 12806801)			Immediately	$ 7.33
12	W11772394		Screw (2)   (Replaces: 12990604)			Immediately	$ 10.94
13	WP12806701		Cover, Damper   (Replaces: 12806701)				$ 101.70
14	W11750607		Insulation   (Replaces: 13012402)				$ 42.98
15	W10177399		Control, Damper (incl. Harness)		Appelez-nous	-
NI	12973603		Harness, Control (refrigerator)		Appelez-nous	-
