SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Top Burner


04 - Broiler And Oven Burner


05 - Power Lock


06 - Oven Body


07 - Oven Door


08 - Wire Harnesses And Components

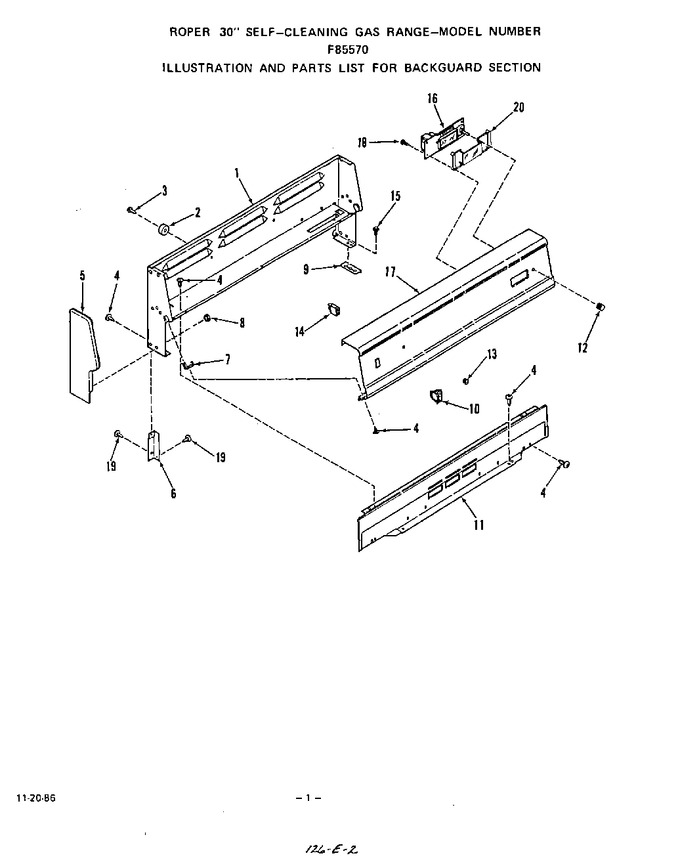

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	333763		Backguard Body		Appelez-nous	-
2	335123		Bumper		Appelez-nous	-
3	300864		Screw 10-32x3/4``		Appelez-nous	-
4	326974		Screw 10abx1/2``		Appelez-nous	-
5	334161		Right		Appelez-nous	-
5	334162		Left		Appelez-nous	-
6	334337		Right		Appelez-nous	-
6	334338		Left		Appelez-nous	-
7	334375		Backguard Clip		Appelez-nous	-
8	335776		Pal Nut		Appelez-nous	-
9	335977		Cleat		Appelez-nous	-
10	334649		Oven Light Switch		Appelez-nous	-
11	335660		Backguard Lower Front Panel		Appelez-nous	-
12	339197		Clock Knob		Appelez-nous	-
13	331705		Lens-indicator Light		Appelez-nous	-
14	331716		Indicator Light		Appelez-nous	-
15	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
16	335616		Clock		Appelez-nous	-
17	335674		Control Panel		Appelez-nous	-
18	336677		Screw 6-32x1/2``		Appelez-nous	-
19	327320		Screw 10-16x7/16``		Appelez-nous	-
20	336536		Clock Lens		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
