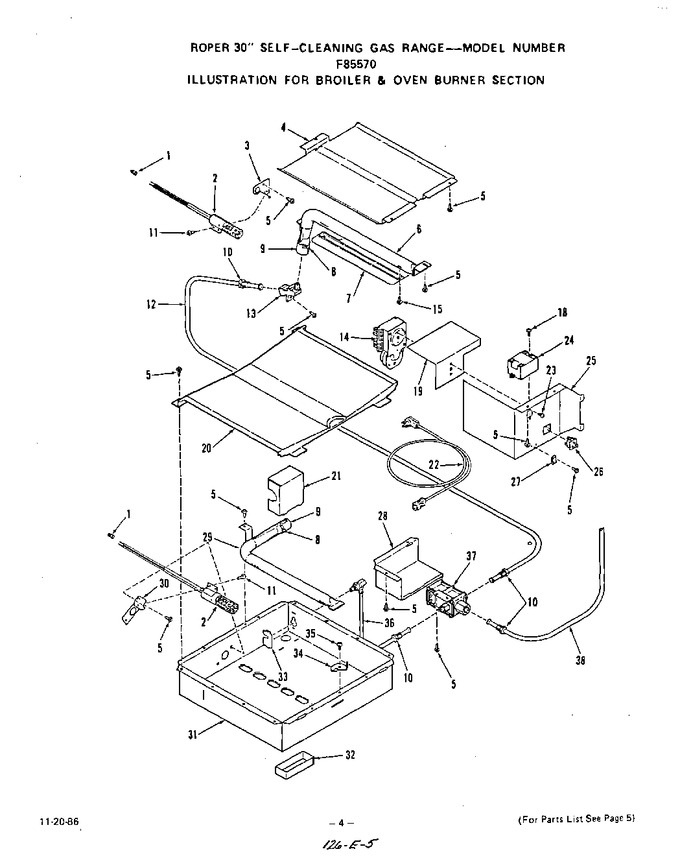

04 - Broiler And Oven Burner


05 - Power Lock


06 - Oven Body


07 - Oven Door


08 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	103595		Wire Connector		Appelez-nous	-
2	WG02F04373		Igniter-broiler & Oven Burner   (Replaces: 319887)			Immediately	$ 109.23
3	327804		Bracket-broiler Burner Igniter		Appelez-nous	-
4	327807		Baffle-broiler Burner		Appelez-nous	-
5	327320		Screw 10-16x7/16``		Appelez-nous	-
6	330163		Broiler Burner (inc`s. Keys 7, 8, 9, 15)		Appelez-nous	-
7	328660		Baffle		Appelez-nous	-
8	312989		Adjustment Screw -air Shutter		Appelez-nous	-
9	312988		Air Shutter		Appelez-nous	-
10	113384		Inverted Nut 3/8``		Appelez-nous	-
11	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
12	286823		Tubing 3/8`` (control Valve To Broiler Orifice)		Appelez-nous	-
13	331992		Broiler Orifice Fitting		Appelez-nous	-
14	328350		Timer		Appelez-nous	-
15	97217		Screw 8 - 32x3/8``		Appelez-nous	-
18	329382		Screw 6-20x3/8``		Appelez-nous	-
19	329903		Shield		Appelez-nous	-
20	335196		Baffle-oven Burner		Appelez-nous	-
21	331864		Shield-orifice Fitting		Appelez-nous	-
22	332479		Range Service Cord		Appelez-nous	-
23	78565		Screw 8-32x3/16``		Appelez-nous	-
24	320990		Module-spark Igniter		Appelez-nous	-
25	329442		Mounting Bracket-components		Appelez-nous	-
26	232150		Disconnect		Appelez-nous	-
27	335798		Clip		Appelez-nous	-
28	331143		Shield-component Wire		Appelez-nous	-
29	333746		Oven Burner		Appelez-nous	-
30	311689		Bracket-igniter		Appelez-nous	-
31	327775		Bottom-oven Burner Box		Appelez-nous	-
32	329279		Insulation Retainer-oven Orifice		Appelez-nous	-
33	328473		Plate-orifice Fitting		Appelez-nous	-
34	328479		Latch-oven Burner Box Bottom		Appelez-nous	-
35	328584		Shoulder Screw		Appelez-nous	-
36	331994		Tubing 3/8`` W/orifice Fitting (control Valve To Oven Burner)		Appelez-nous	-
37	306267		Control Valve		Appelez-nous	-
38	231899		Tubing 3/8`` (control Valve To Shut-off Valve)		Appelez-nous	-
