SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Top Burner


04 - Broiler And Oven Burner


05 - Power Lock


06 - Oven Body


07 - Oven Door


08 - Wire Harnesses And Components

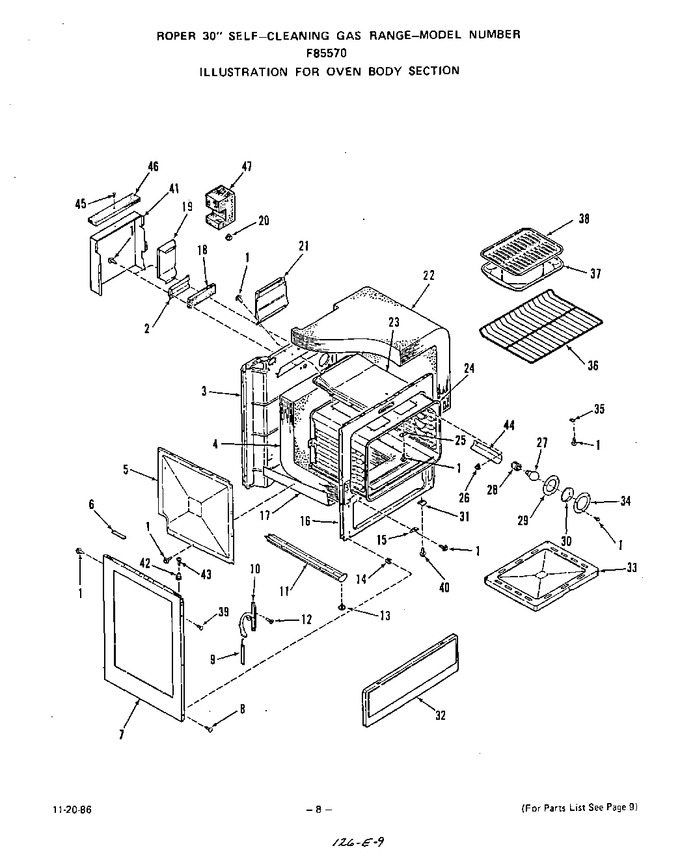

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327809		Wire Shield		Appelez-nous	-
3	334604		Main Back		Appelez-nous	-
4	329146		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
5	333704		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
6	335320		Spacer-main Top (2 Req)		Appelez-nous	-
7	335826		White		Appelez-nous	-
7	335830		Body Side (almond)		Appelez-nous	-
8	314124		Screw 8abx5/8``		Appelez-nous	-
9	334725		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
10	334632		Right		Appelez-nous	-
10	334633		Left		Appelez-nous	-
11	334811		Base W/levelers-lt. Or Rt.		Appelez-nous	-
12	331704		Screw		Appelez-nous	-
13	326052		Leg Levelers (4 Req)		Appelez-nous	-
14	330031		Expansion Nut Spacer (4 Req)   (Replaces: 312605)			Immediately	$ 14.48
15	335480		Catch-lo Front Panel		Appelez-nous	-
16	335416		Front Frame		Appelez-nous	-
17	331144		Lower Insulation Retainer		Appelez-nous	-
18	330166		Insulation		Appelez-nous	-
19	327808		Wire Shield		Appelez-nous	-
20	324257		Bushing		Appelez-nous	-
21	331564		Flue Deflector		Appelez-nous	-
22	329147		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
23	327781		Flue Box		Appelez-nous	-
24	331568		Oven Body		Appelez-nous	-
25	304835		Cover		Appelez-nous	-
26	321539		Clip-thermostat Bulb (2 Req)		Appelez-nous	-
27	DA96-01243C		Oven Bulb   (Replaces: 111257)				$ 144.00
28	87883		Oven Light Holder		Appelez-nous	-
29	229371		Gasket		Appelez-nous	-
30	114989		Oven Lamp Lens		Appelez-nous	-
31	335481		Support-lr. Front Panel		Appelez-nous	-
32	332109		Almond		Appelez-nous	-
32	332105		White		Appelez-nous	-
33	335231		Oven Bottom		Appelez-nous	-
34	229372		Lamp Lens Retainer		Appelez-nous	-
35	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
36	326069		Oven Rack		Appelez-nous	-
37	331592		Broiler Pan		Appelez-nous	-
38	326297		Broiler Pan Grid		Appelez-nous	-
39	281160		Accordian Rivet		Appelez-nous	-
40	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
41	328487		Shield-flue Deflector		Appelez-nous	-
42	333892		Strike		Appelez-nous	-
43	327256		Screw 6-32x7/8``		Appelez-nous	-
44	335197		Shield-thermostat Bulb		Appelez-nous	-
45	296097		Button-dart		Appelez-nous	-
46	329834		Insulation		Appelez-nous	-
47	335815		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
