Diagram for 02 - Backguard
02 - Backguard

Diagram for 03 - Main Top
03 - Main Top

Diagram for 04 - Power Lock
04 - Power Lock

Diagram for 05 - Oven Body
05 - Oven Body

Diagram for 06 - Broiler And Oven Burner
06 - Broiler And Oven Burner

Diagram for 07 - Top Burner
07 - Top Burner

Diagram for 08 - Oven Door
08 - Oven Door

Diagram for 09 - Wire Harness, Griddle
09 - Wire Harness, Griddle


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 335777 Backguard Body Appelez-nous -
2 335123 Bumper Appelez-nous -
3 300864 Screw 10-32x3/4`` Appelez-nous -
4 326974 Screw 10abx1/2`` Appelez-nous -
5 334162 Left Appelez-nous -
5 334161 Right Appelez-nous -
6 334338 Backguard Support (left) Appelez-nous -
6 334337 Backguard Support (right) Appelez-nous -
7 334375 Backguard Clip Appelez-nous -
8 335776 Pal Nut Appelez-nous -
9 108069 Speed Nut 10 - 32 Appelez-nous -
10 334649 Xswitch-oven Light Appelez-nous -
11 335710 Backguard Panel-front Appelez-nous -
12 334914 Clock Knob Appelez-nous -
13 334898 Lens Asm. Appelez-nous -
14 336678 Clock/oven Control Appelez-nous -
15 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

16 78153 Screw 6-32x5/16`` Appelez-nous -
17 335323 Control Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

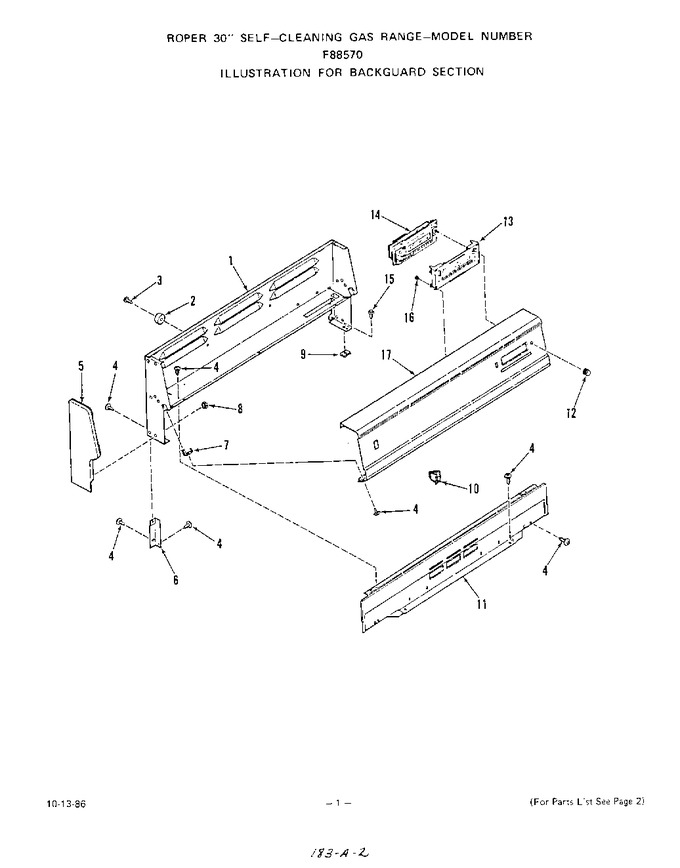

Diagram for F8857^0
