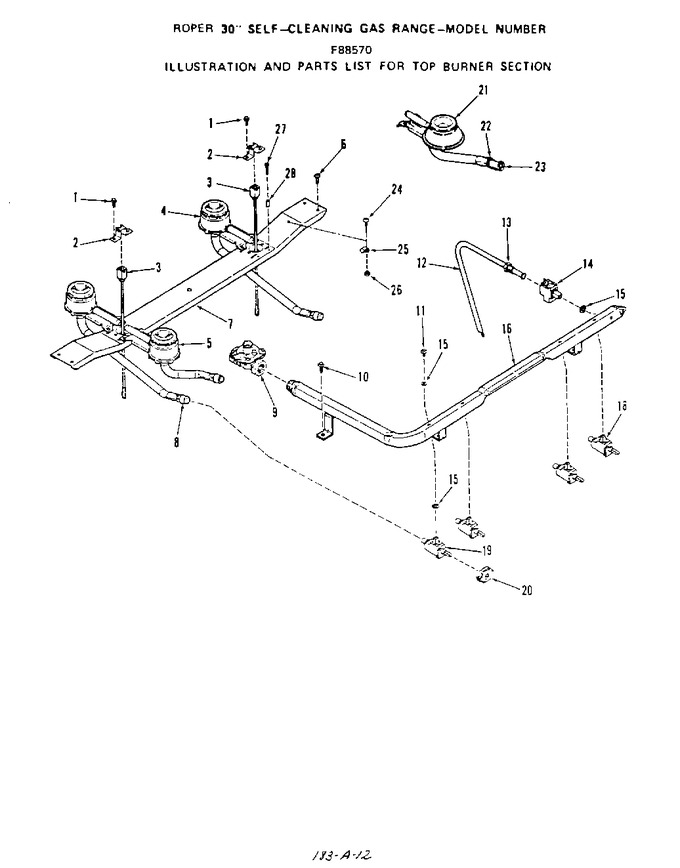

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	97217		Screw 8 - 32x3/8``		Appelez-nous	-
2	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
4	333223		Rear Burner-lt. Or Rt.. (inc`s. Key 8)		Appelez-nous	-
5	333222		Front Burner-lt (inc`s. Key 8)		Appelez-nous	-
6	327621		Screw 6-32x3/8``		Appelez-nous	-
7	333607		Support-top Burner		Appelez-nous	-
8	327198		Air Shutter		Appelez-nous	-
9	324528		Pressure Regulator		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	311455		Screw (for Key 19)		Appelez-nous	-
12	231899		Tubing 3/8``		Appelez-nous	-
13	113384		Inverted Nut 3/8``		Appelez-nous	-
14	326830		Shut Off Valve		Appelez-nous	-
15	313563		Gasket (for Key 14 & 19)		Appelez-nous	-
16	333901		Manifold Pipe		Appelez-nous	-
17	311692		Gasket (for Key 11)		Appelez-nous	-
18	335317		Gas Valve (inc`s Key 11) Rt. Fr.		Appelez-nous	-
19	332002		Gas Valve (inc`s Key 11) Rt.rr., Lt.fr.lt.rr.		Appelez-nous	-
20	310253		Switch-gas Valve		Appelez-nous	-
21	334818		Front Burner-rt. (inc`s Key 22 & 23)		Appelez-nous	-
22	301911		Adjustment Screw		Appelez-nous	-
23	301910		Air Shutter		Appelez-nous	-
24	238833		Screw 8-32 X 3/8``		Appelez-nous	-
25	106767		Clip		Appelez-nous	-
26	239764		Nut 8-32		Appelez-nous	-
27	327256		Screw 6-32x7/8``		Appelez-nous	-
28	335718		Eyelet		Appelez-nous	-
	334511		Xleft		Appelez-nous	-
	334510		Xright		Appelez-nous	-
