SELECT A DIAGRAM

02 - Backguard

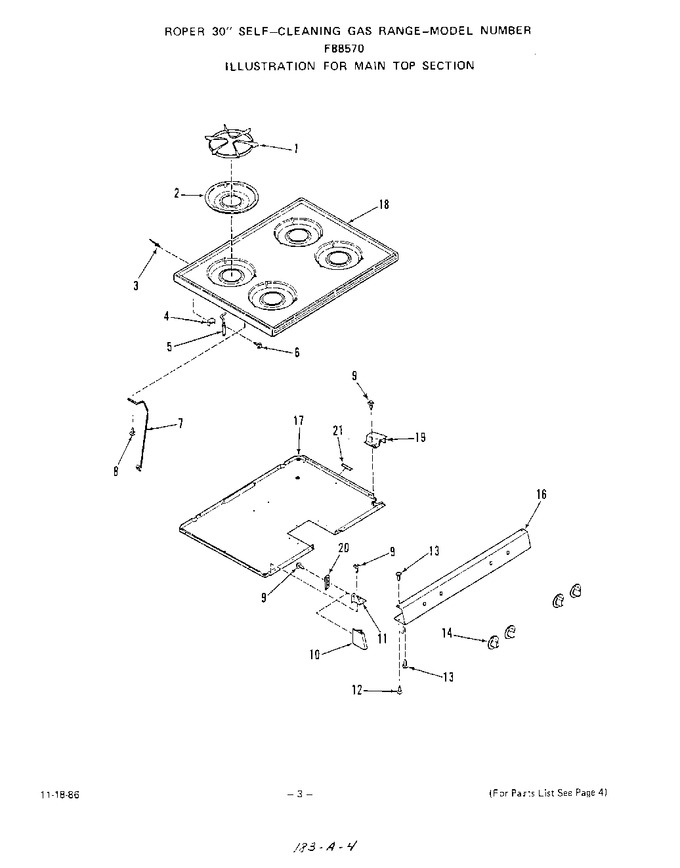

03 - Main Top


04 - Power Lock


05 - Oven Body


06 - Broiler And Oven Burner


07 - Top Burner


08 - Oven Door


09 - Wire Harness, Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Burner Grate (4 Req)		Appelez-nous	-
2	322888		Insert Pan (4 Req)		Appelez-nous	-
3	301167		Rivet			Immediately	$ 2.16
4	335975		Hinge Mounting Bracket		Appelez-nous	-
5	320921		Right		Appelez-nous	-
5	320922		Left		Appelez-nous	-
6	321162		Screw 10-32 X 3/4``		Appelez-nous	-
7	332284		Main Top Support Rod (2 Req)		Appelez-nous	-
8	300000		Screw 6-32 X 5/16``		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	333349		Right		Appelez-nous	-
10	333350		Left		Appelez-nous	-
11	333352		Left		Appelez-nous	-
11	333351		Right		Appelez-nous	-
12	327621		Screw 6-20x3/8``		Appelez-nous	-
13	326974		Screw 10abx1/2``		Appelez-nous	-
14	334093		Gas Valve Knob (4 Req)		Appelez-nous	-
16	335321		Manifold Panel		Appelez-nous	-
17	333547		Burner Box Bottom		Appelez-nous	-
18	332318		White		Appelez-nous	-
18	335298		Chrome		Appelez-nous	-
18	332324		Almond		Appelez-nous	-
19	334266		Wire Cover		Appelez-nous	-
20	335977		Cleat		Appelez-nous	-
21	335760		Tubing Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
