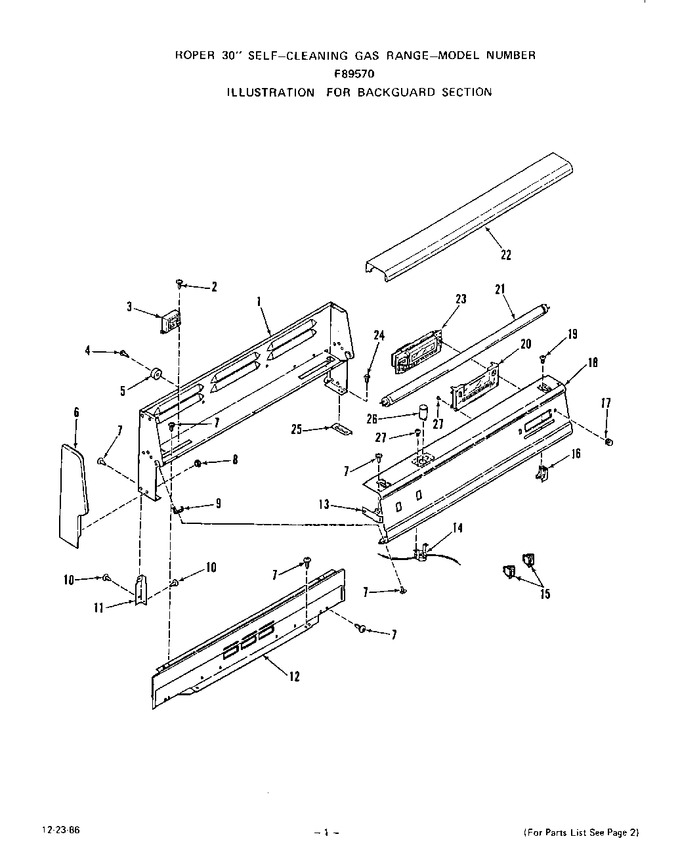

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	335777		Backguard Body		Appelez-nous	-
2	329382		Screw 6-20x3/8``		Appelez-nous	-
3	98186		Ballast		Appelez-nous	-
4	300864		Screw 10-32x3/4``		Appelez-nous	-
5	335123		Bumper		Appelez-nous	-
6	333761		Left		Appelez-nous	-
6	333760		Right		Appelez-nous	-
7	326974		Screw 10abx1/2``		Appelez-nous	-
8	335776		Pal Nut		Appelez-nous	-
9	334375		Backguard Clip		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	334337		Right		Appelez-nous	-
11	334338		Left		Appelez-nous	-
12	336660		Backguard Front Panel		Appelez-nous	-
13	335667		Backguard Bracket		Appelez-nous	-
14	334924		Starter Base		Appelez-nous	-
15	334649		Switch		Appelez-nous	-
16	334173		Lamp Holder		Appelez-nous	-
17	334914		Clock/oven Control Knob		Appelez-nous	-
18	335418		Control Panel		Appelez-nous	-
19	89022		Screw 6-32x3/8``		Appelez-nous	-
20	334898		Clock/oven Control Lens		Appelez-nous	-
21	334193		Fluorescent Lamp		Appelez-nous	-
22	334176		Canopy Panel		Appelez-nous	-
23	4338643CP		Clock/oven Control   (Replaces: 335448)		Appelez-nous	-
24	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
25	335977		Cleat		Appelez-nous	-
26	334104		Lamp Starter		Appelez-nous	-
27	78153		Screw 6-32x5/16``		Appelez-nous	-
