SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Power Lock


04 - Oven Body


05 - Broiler And Oven Burner


06 - Top Burner


07 - Oven Door


08 - Wire Harness And Components


09 - Wire Harness And Components

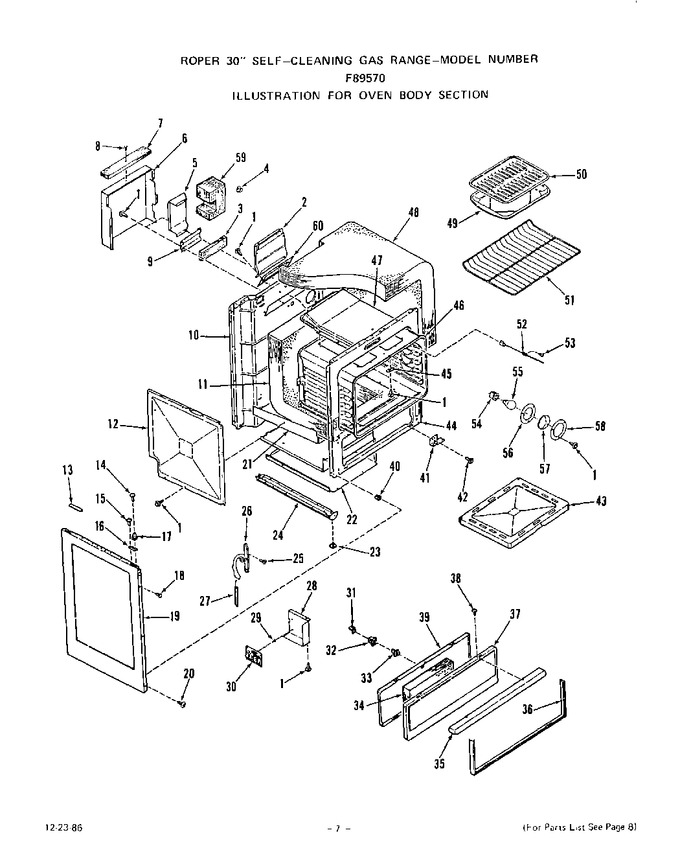

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	331564		Flue Deflector		Appelez-nous	-
3	330166		Insulation		Appelez-nous	-
4	324257		Bushing		Appelez-nous	-
5	327808		Wire Shield		Appelez-nous	-
6	328487		Flue Deflector Shield		Appelez-nous	-
7	329834		Insulation		Appelez-nous	-
8	296097		Dart Button		Appelez-nous	-
9	327808		Wire Shield		Appelez-nous	-
10	334604		Main Back		Appelez-nous	-
11	329146		Insulation-back & Bottom		Appelez-nous	-
12	333704		Insulation Retainer (lt. Or Rt.)		Appelez-nous	-
13	335320		Main Top Spacer		Appelez-nous	-
14	327256		Screw 6-32x7/8``		Appelez-nous	-
15	300000		Screw 6-32 X 5/16``		Appelez-nous	-
16	334340		Right		Appelez-nous	-
16	334341		Left		Appelez-nous	-
17	333892		Strike		Appelez-nous	-
18	281160		Rivet		Appelez-nous	-
19	335826		White		Appelez-nous	-
19	335830		Body Side (almond)		Appelez-nous	-
20	314124		Screw 8abx5/8``		Appelez-nous	-
21	331144		Insulation Retainer-lower		Appelez-nous	-
22	328491		Storage Compartment		Appelez-nous	-
23	326052		Leg Levers (4 Req)		Appelez-nous	-
24	334811		Base W/leverlers (lt. Or Rt.)		Appelez-nous	-
25	331704		Screw		Appelez-nous	-
27	334726		Oven Door Spring (lt. Or Rt.)		Appelez-nous	-
28	335774		Circuit Board Cover		Appelez-nous	-
29	334955		Circuit Board Spacer		Appelez-nous	-
30	334701		Circuit Board W/relay		Appelez-nous	-
31	335059		Bracket-catch		Appelez-nous	-
32	335060		Catch-door		Appelez-nous	-
33	335061		Strike-door		Appelez-nous	-
34	303097		Insulation		Appelez-nous	-
35	332205		Handle		Appelez-nous	-
36	332161		Frame		Appelez-nous	-
37	332118		Front Panel-lower		Appelez-nous	-
38	316849		Screw-10-32x1/2``		Appelez-nous	-
39	335065		Lower Door Lining		Appelez-nous	-
40	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 14.48
41	335058		Hinge		Appelez-nous	-
42	327320		Screw 10-16x7/16``		Appelez-nous	-
43	335231		Oven Bottom		Appelez-nous	-
44	335416		Front Frame		Appelez-nous	-
45	304835		Cover		Appelez-nous	-
46	334819		Oven Body		Appelez-nous	-
47	327781		Flue Box		Appelez-nous	-
48	329147		Insulation-top & Sides		Appelez-nous	-
49	331592		Broiler Pan		Appelez-nous	-
50	326297		Broiler Pan Grid		Appelez-nous	-
51	326069		Oven Rack		Appelez-nous	-
52	12001656		Sensor   (Replaces: 334300)			Immediately	$ 39.55
53	293121		Screw		Appelez-nous	-
54	87883		Oven Lamp Holder		Appelez-nous	-
55	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
56	229371		Gasket		Appelez-nous	-
57	114989		Oven Lamp Lens		Appelez-nous	-
58	229372		Lamp Lens Retainer		Appelez-nous	-
59	335815		Insulation		Appelez-nous	-
60	336510		Flue Insulation		Appelez-nous	-
	334632		Xright		Appelez-nous	-
	334633		Xleft		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
