SELECT A DIAGRAM

Diagram for 01 - Backguard
01 - Backguard

Diagram for 02 - Main Top
02 - Main Top

Diagram for 03 - Power Lock
03 - Power Lock

Diagram for 04 - Oven Body
04 - Oven Body

Diagram for 05 - Broiler And Oven Burner
05 - Broiler And Oven Burner

Diagram for 06 - Top Burner
06 - Top Burner

Diagram for 07 - Oven Door
07 - Oven Door

Diagram for 08 - Wire Harness And Components
08 - Wire Harness And Components

Diagram for 09 - Wire Harness And Components
09 - Wire Harness And Components


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 328956 Screw 4-40x11/16`` Appelez-nous -
3 334932 Micro Switch Appelez-nous -
4 333628 Cover-lock Rod Appelez-nous -
5 288248 Screw 10-24x1/4`` Appelez-nous -
6 335984 Extension-handle Appelez-nous -
7 313075 Spring Appelez-nous -
8 333627 Lock Box Appelez-nous -
9 21067 Washer Appelez-nous -
10 328656 Latch Assm. (inc`s. Key 7) Appelez-nous -
11 335692 Clip-knob Appelez-nous -
12 333999 Knob-lock Appelez-nous -
13 333710 Handle-latch Appelez-nous -
14 328472 Insulation-latch Appelez-nous -
15 329171 Insulator-switch (3 Req) Appelez-nous -
18 333694 Wire Cover-latch Switches Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

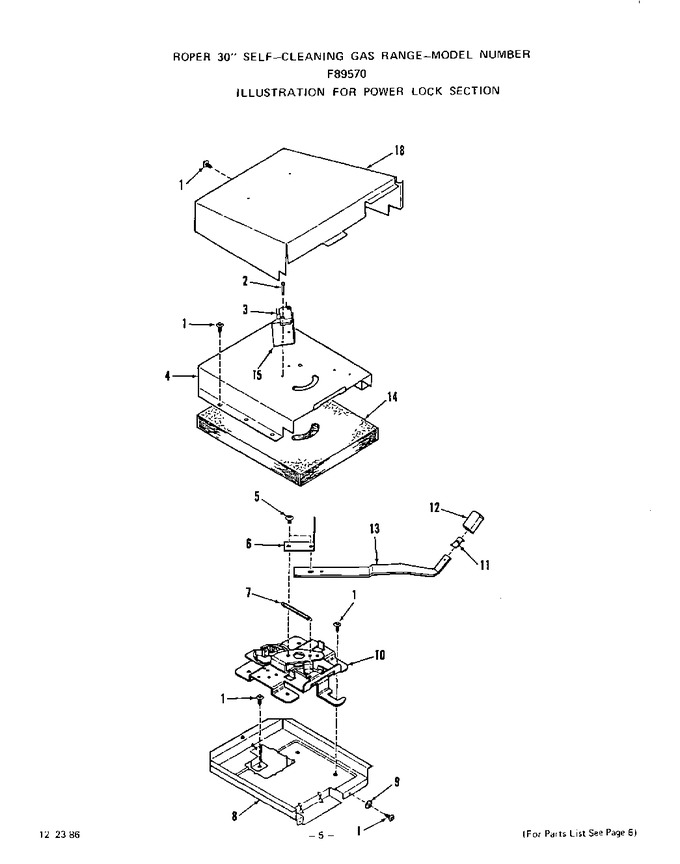

Diagram for F8957^0
