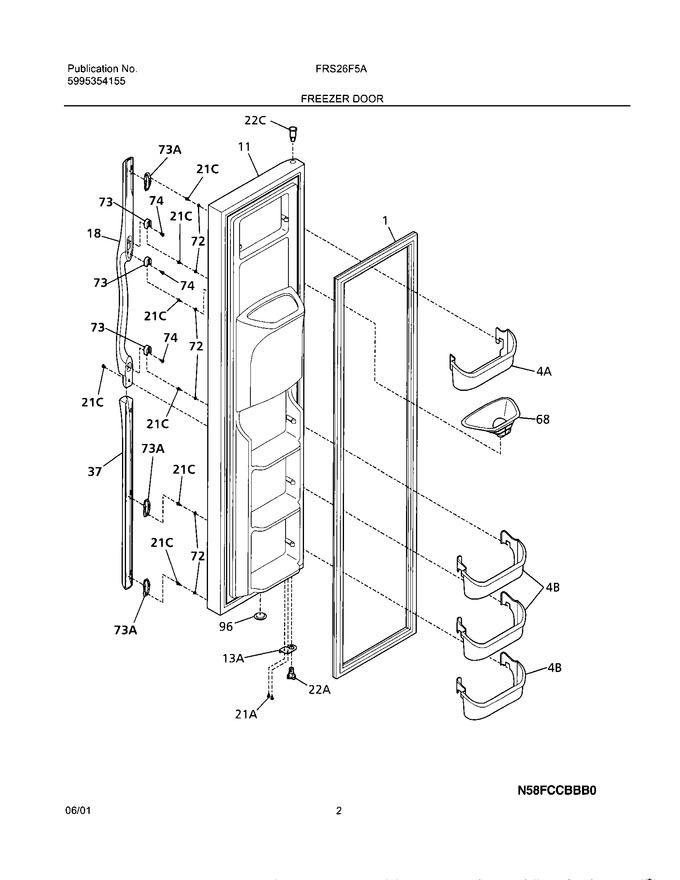

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Gasket-frzr Door,white ,magnetic   (Replaces: 240390602)				$ 95.17
4	240351601		Bin-door			Immediately	$ 58.73
4	240334201		Bin-door,frzr-upper				$ 67.21
11	240451809		Panel-frzr Door,bisque ,complete Assy		Appelez-nous	-
13	240456904		Door Stop,bisque ,frzr		Appelez-nous	-
18	240359109		Handle-door,bisque		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22	240328402		Bearing-hinge,upper				$ 19.85
37	240359204		Trim-handle,30.13`` ,bisque ,lower				$ 33.44
68	240467701		Chute-ice		Appelez-nous	-
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
73	240339101		Part Of Handle/trim (not Available)				$ 4.20
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345503		Plug-foam Hole,white		Appelez-nous	-
NI	240323201		Wiring Harness		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71
NI	5303918256		Dispenser Heater Kit				$ 474.16
