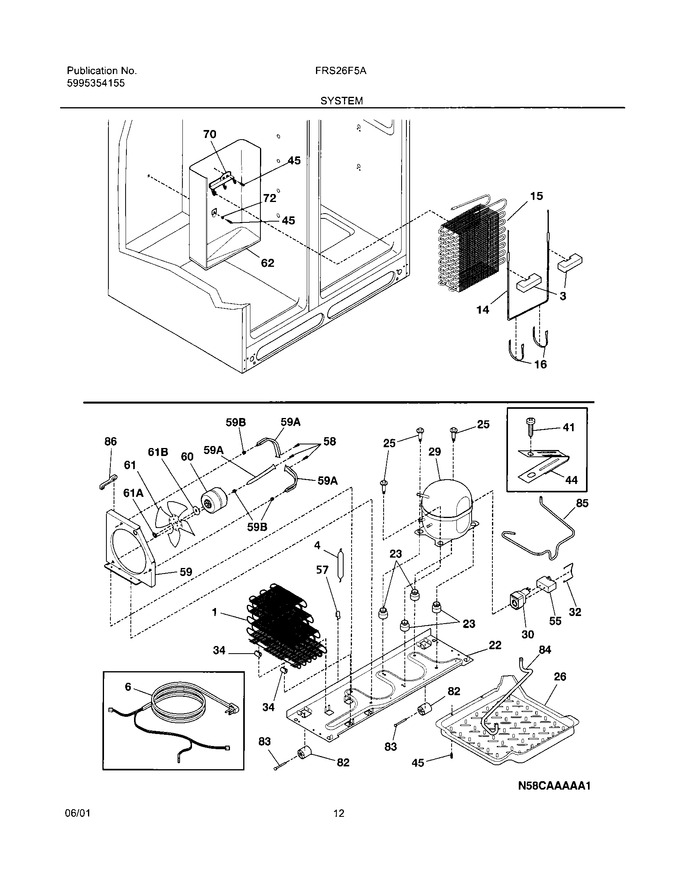

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526057		Condenser   (Replaces: 240333603)				$ 153.20
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 19.85
4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
6	240346401		Wiring Harness,machine Compt		Appelez-nous	-
14	5303918255		Defrost Heater Kit   (Replaces: 5303918253)			Immediately	$ 103.48
15	5303918284		Evaporator Kit   (Replaces: 5303918216)				$ 481.01
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
22	240330003		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240330402		Screw-shoulder,hex Hd ,1/4-28 Shoulder ,(3)		Appelez-nous	-
26	241697603		Pan-defrost Drain   (Replaces: 240332602)				$ 79.22
29	5304475102		Compressor,w/electricals   (Replaces: 5303918254)			Immediately	$ 660.56
30	5304491941		Starter-ptc   (Replaces: 218721119)			Immediately	$ 103.19
32	218740800		Wire-bale				$ 65.21
34	240405201		Grommet-cond Mtg,(4)				$ 19.85
41	218897001		Screw,hex Washer Head ,8-32 X 1/4				$ 4.40
44	5303001199		Clamp				$ 65.92
45	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
57	240403601		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	240315501		Shroud-cond Fan				$ 65.42
59	240346601		Grommet-bracket,(3)				$ 19.24
59	240346501		Bracket-support,cond Mtr ,(3)				$ 21.97
60	5303918774		Motor-condenser Fan   (Replaces: 240334001)			Immediately	$ 186.30
61	215004700		Nut,speed				$ 3.78
61	215004800		Grommet-silencer				$ 52.50
61	240315401		Fan Blade,galv Steel ,condenser Fan				$ 169.54
62	5304481642		Trough-drain   (Replaces: 240429402)				$ 327.07
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
82	5304418225		Roller-rear,comp Base ,(2)				$ 51.57
83	215164200		Pin-roller,(2)		Appelez-nous	-
84	241957901		Tube-drain,lower   (Replaces: 5304421068)				$ 60.96
85	240346201		Tube-connector,suction		Appelez-nous	-
86	240409302		Spacer-cond Tube,black				$ 67.49
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
NI	240439901		Wiring Harness,controls				$ 153.85
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	5303918218		Heat Exchanger Kit,suction Line		Appelez-nous	-
NI	5308000039		Screw		Appelez-nous	-
