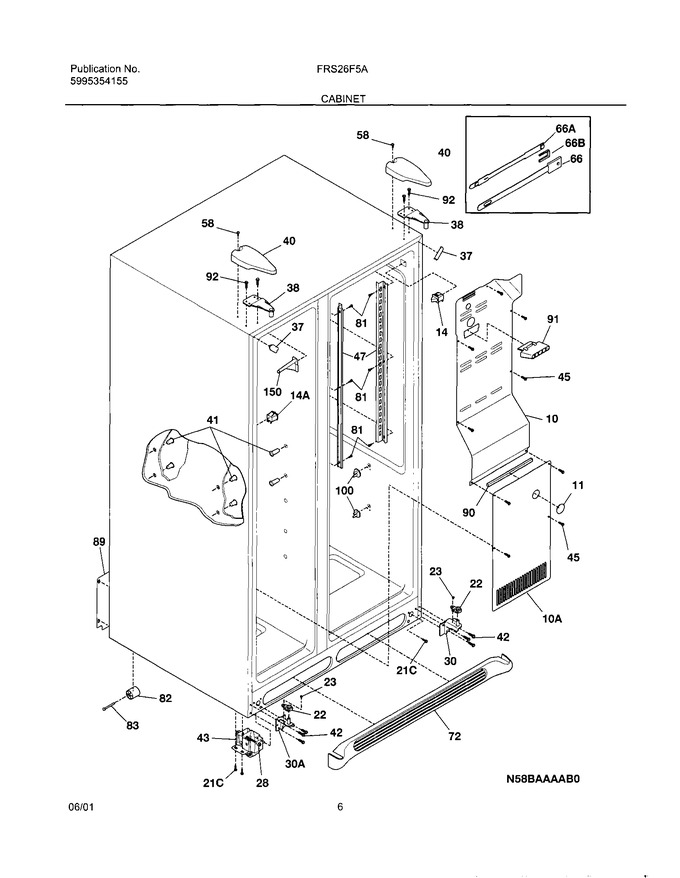

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435902		Cover-air Duct		Appelez-nous	-
10	240435802		Cover-evap Coil,lower		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	241547902		Switch-light/lamp   (Replaces: 215486600)			Immediately	$ 23.25
14	240505801		Switch-light/lamp   (Replaces: 240413601)				$ 66.63
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	240457701		Plate-door Closer			Immediately	$ 56.70
23	240402701		Screw-10-32 X 1/4 Flat Hd				$ 21.79
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 31.33
30	5303918455		Bracket-lower Hinge   (Replaces: 240419102)				$ 142.04
30	5303918455		Bracket-lower Hinge, Ref   (Replaces: 240419101)				$ 142.04
37	240337604		Trim-cabinet Corner,bisque ,(2)		Appelez-nous	-
38	240327207		Bracket-upper Hinge   (Replaces: 240327201)			Immediately	$ 57.50
40	240327002		Cover-upper Hinge,bisque		Appelez-nous	-
41	241550801		Grommet-shelf Mtg,1.40`` Long   (Replaces: 240358701)				$ 63.70
42	240578902		Screw-hinge Mtg,hex Head `1/4-20 X 0.75   (Replaces: 240315301)			Immediately	$ 14.18
43	5304499445		Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh).   (Replaces: 240335003)			Immediately	$ 31.33
45	241500303		Screw,8 18 X .500 ,(3)   (Replaces: 241500301)			Immediately	$ 4.55
47	240349401		Channel-shelf Mtg,side ,(2)				$ 67.88
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
66	240355901		Insulation-damper		Appelez-nous	-
66	240324801		Cover-damper		Appelez-nous	-
66	240324901		Damper-meat Keeper		Appelez-nous	-
72	240324404		Grille/kickplate,bisque		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
82	5304418225		Roller-rear,comp Base ,(2)				$ 51.57
83	215164200		Pin-roller,(2)		Appelez-nous	-
89	5304520905		Cover-access,w/ Label   (Replaces: 240326104)			Immediately	$ 74.03
90	218249805		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
100	241993101		Support-crspr Cover,(4)   (Replaces: 240423701)			Immediately	$ 5.62
100	241993001		Support-crspr Cover,(4)   (Replaces: 240350802)			Immediately	$ 19.23
150	240368701		Guide-control Bulb		Appelez-nous	-
NI	241550701		Grommet-shelf Mtg,.875`` Long   (Replaces: 240358801)				$ 18.20
NI	240396801		Clamp-tube				$ 19.13
NI	5304414035		Paint,touch-up ,bisque				$ 13.46
