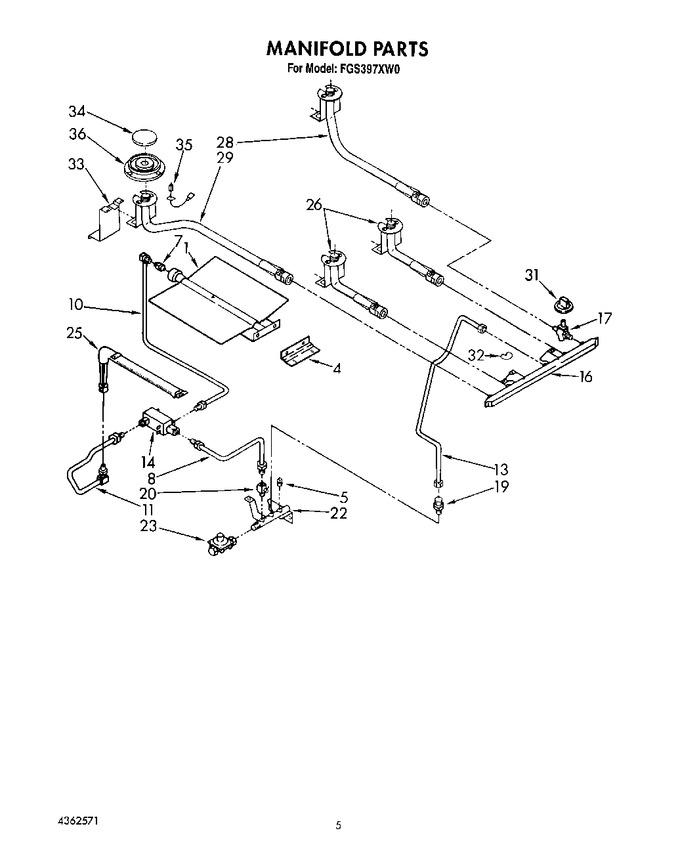

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320907		Burner, Broiler		Appelez-nous	-
1	786753		Nut, 6-32 (6)		Appelez-nous	-
4	786740		Screw (3)		Appelez-nous	-
4	4320888		Support, Burner Mounting		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
7	786309		Orifice (lp Gas No. 58)		Appelez-nous	-
7	4320926		Orifice (natural Gas No. 51.)		Appelez-nous	-
8	4320314		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	786741		Nut, Lock		Appelez-nous	-
10	4320925		Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner)		Appelez-nous	-
11	786741		Nut, Lock		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
13	4362541		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4362553		Manifold		Appelez-nous	-
17	4362556		Valve, Top Burner (l.f. & R.r.)		Appelez-nous	-
17	4362555		Valve, Top Burner (r.f. & L.r.)		Appelez-nous	-
19	4320319		Fitting		Appelez-nous	-
20	4320320		Valve, Shut-off		Appelez-nous	-
22	4320321		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	4362562		Venturi Tube		Appelez-nous	-
28	4362564		Venturi Tube R.r.		Appelez-nous	-
29	4362565		Venturi Tube L.r.		Appelez-nous	-
31	4320942		Knob, Top Burner (4)		Appelez-nous	-
32	4320940		Elbow, Manifold Venturi (4)		Appelez-nous	-
33	4362563		Bracket,		Appelez-nous	-
34	4321281		Burner Cap (small)		Appelez-nous	-
34	4321280		Burner Cap (large)		Appelez-nous	-
35	4321276		Electrode (4)		Appelez-nous	-
36	4363225		Burner Assembly (small (2))		Appelez-nous	-
36	4363226		Burner Assembly (large (2))		Appelez-nous	-
