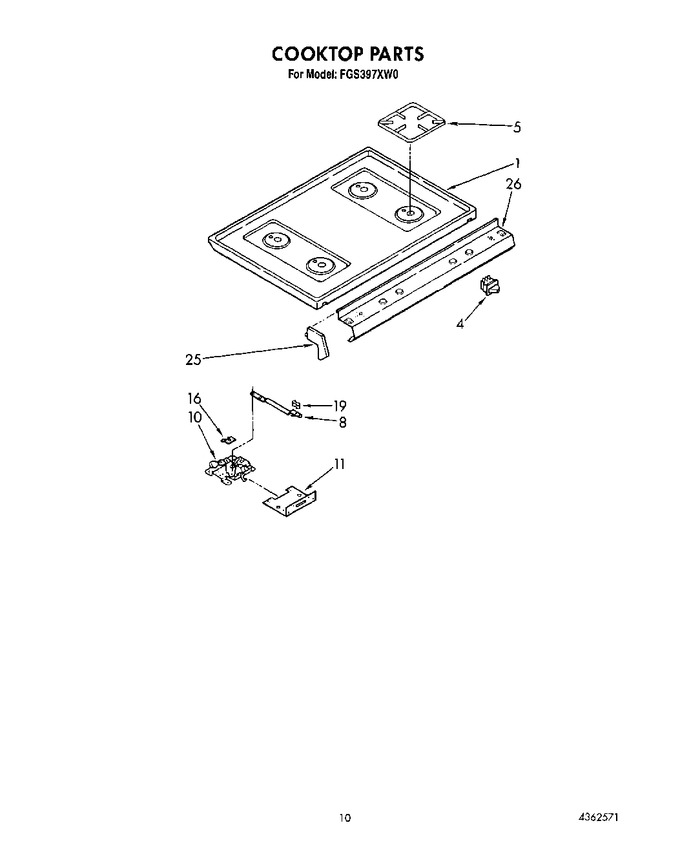

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363223		Top, Main (white)		Appelez-nous	-
1	4363224		Top, Main (almond)		Appelez-nous	-
1	WP488729		Top, Main (screw, Maintop (4))   (Replaces: 4157466)			Immediately	$ 7.01
4	786325		Switch, Rocker		Appelez-nous	-
5	4363227		Grate, Top Burner (4)		Appelez-nous	-
8	786376		Handle, Latch		Appelez-nous	-
10	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 4315342)			Immediately	$ 9.65
10	786303		Latch Assembly		Appelez-nous	-
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	4362570		Bracket, Switch		Appelez-nous	-
16	786752		Screw, 4-40 (2)		Appelez-nous	-
19	4320836		Knob, Latch Handle		Appelez-nous	-
25	4315009		End Cap (right Side)		Appelez-nous	-
25	4315008		End Cap (left Side)		Appelez-nous	-
26	4362554		Panel, Control		Appelez-nous	-
