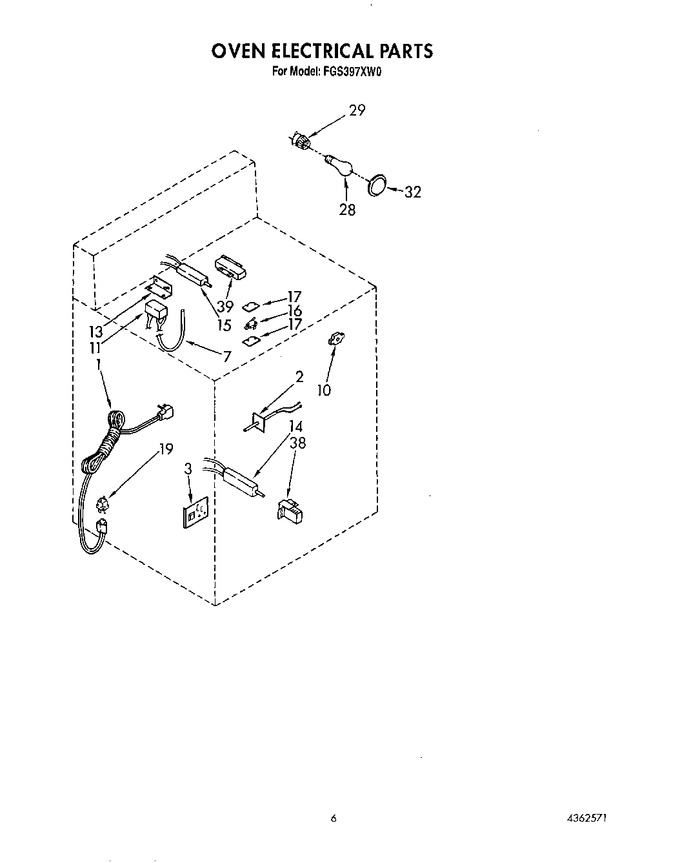

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	4320772		Sensor, Oven		Appelez-nous	-
2	786744		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
3	4315254		Support, Circuit Board		Appelez-nous	-
3	4320808		Circuit Board		Appelez-nous	-
7	4321278		Clip		Appelez-nous	-
7	4362567		Ignitor, Wire Top Burner		Appelez-nous	-
10	4362566		Switch, Top Burner Actuator (4)		Appelez-nous	-
11	4320867		Spark Module (2)		Appelez-nous	-
13	786581		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor   (Replaces: 786659)			Immediately	$ 60.68
15	814269		Ignitor, Broil   (Replaces: 4320913)				$ 184.01
15	786753		Nut (2)		Appelez-nous	-
15	WP486754		Screw (2)   (Replaces: 4320376)				$ 6.75
16	786669		Switch, Oven Door Latch		Appelez-nous	-
16	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	WP74011278		Housing, Oven Light   (Replaces: 4321075)				$ 101.56
32	WP74011278		Lens, Oven Light   (Replaces: 4320959)				$ 101.56
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	786802		Bracket, Broiler Ignitor		Appelez-nous	-
