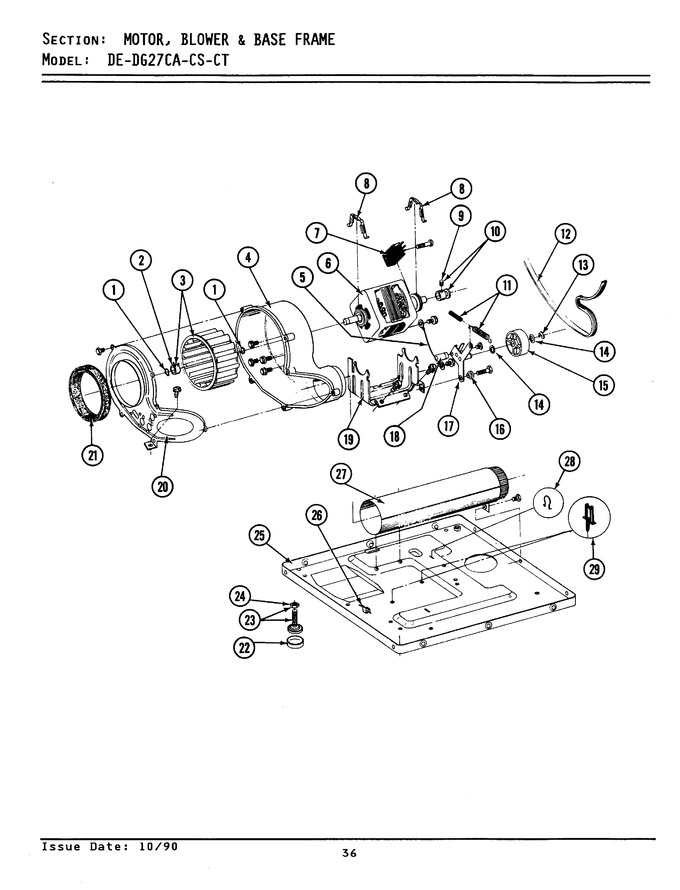

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP9703438 | Ring, Retaining (Replaces: 410233) | 00 |
|
Immediately | $ 3.81 | |||
| 002 | WP312967 | Clamp, Blower Housing (Replaces: 312967) | 00 |
|
Immediately | $ 10.68 | |||
| 003 | Y303836 | Blower Wheel Assembly & Clamp | 00 |
|
Immediately | $ 32.35 | |||
| 004 | Y312893 | Housing, Blower | 00 |
|
$ 55.67 | ||||
| 005 | 901220 | Wire, Ground | 00 |
|
- | ||||
| 005 | WP488234 | Screw, Ground Wire (Replaces: 910343) | 00 |
|
$ 6.07 | ||||
| 006 | W10410999 | Motor (Replaces: Y303358) | 00 |
|
Immediately | $ 166.30 | |||
| 007 | 306207 | Prod. No.3-3358-8 & No.3-3358-9 |
|
- | |||||
| 007 | Y303879 | Switch, Motor Start Prod. No.3-3358 & No.3-3358-6 | 00 |
|
- | ||||
| 007 | NLA | Switch, Motor Start | 00 |
|
- | ||||
| 007 | Y303877 | Switch, Motor Prod.no.3-3358-2, No.3-3358-4 & | 00 |
|
- | ||||
| 008 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 21.03 | ||||
| 009 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 010 | Y305185 | Pulley, Motor (w/set Screw) | 00 |
|
- | ||||
| 011 | Y303945 | Idler Spring Assembly | 00 |
|
- | ||||
| 012 | WPY312959 | Belt, Tumbler & Motor (Replaces: Y312959) | 00 |
|
Immediately | $ 30.66 | |||
| 013 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 00 |
|
Immediately | $ 10.58 | |||
| 014 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 00 |
|
Immediately | $ 10.01 | |||
| 015 | WP6-3037050 | Pulley, Idler (Replaces: Y303705) | 00 |
|
Immediately | $ 19.89 | |||
| 016 | WP315772 | Sleeve, Idler Arm ----s (Replaces: Y312894) | 00 |
|
Immediately | $ 10.39 | |||
| 017 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 017 | WP6-3033630 | Idler Arm & Shaft Assy. (Replaces: Y303363) | 00 |
|
Immediately | $ 68.43 | |||
| 017 | WPW10116751 | Screw (Replaces: Y312961) | 00 |
|
$ 6.74 | ||||
| 018 | WPW10116756 | Spacer, Idler Bracket (Replaces: Y313582) | 00 |
|
$ 43.70 | ||||
| 019 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 019 | NLA | Support, Motor | 00 |
|
- | ||||
| 020 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 020 | 314778 | Cover For Blower | 00 |
|
- | ||||
| 021 | WPY312901 | Seal, Blower (Replaces: Y312901) | 00 |
|
$ 60.70 | ||||
| 022 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 023 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 024 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 025 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 026 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 027 | Y303442 | Exhaust Duct Assy. | 00 |
|
- | ||||
| 028 | 410490 | Spring, Wire Harness | 00 |
|
- | ||||
| 029 | Y313262 | Retainer, Wire Harness | 00 |
|
- |
