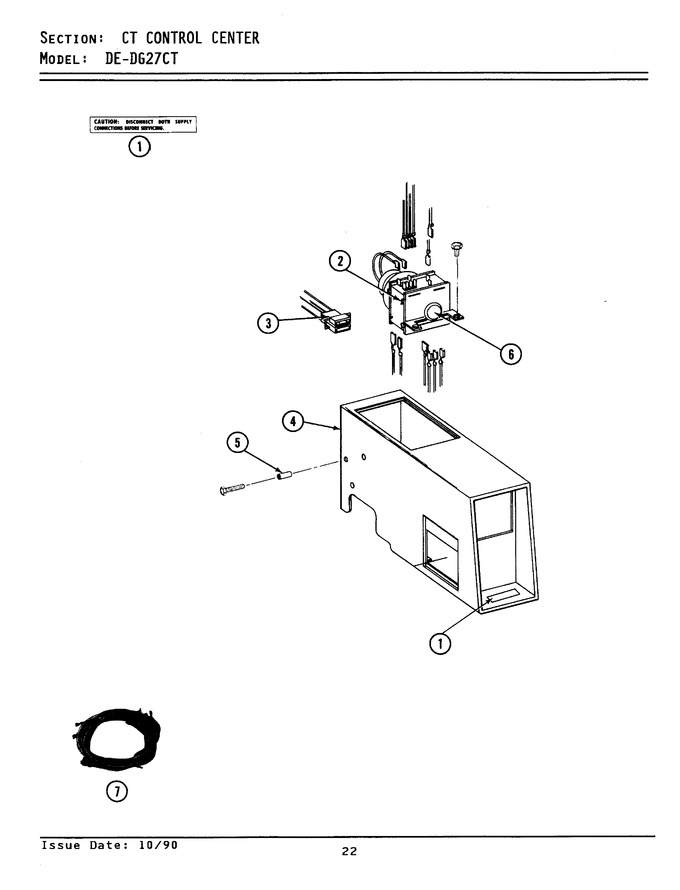

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y313439 | Instruction Label | 00 |
|
- | ||||
| 002 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 002 | NLA | Timer Motor | 00 |
|
- | ||||
| 002 | Y303801 | Timer With Knob And Pin | 00 |
|
- | ||||
| 003 | NLA | Harness For Ticket Control | 00 |
|
- | ||||
| 004 | NLA | Outer Case-white | 00 |
|
- | ||||
| 005 | NLA | Spacer For Vault | 00 |
|
- | ||||
| 005 | Y310842 | Screw | 00 |
|
- | ||||
| 006 | 213089 | Knob For Timer | 00 |
|
- | ||||
| 006 | Y312300 | Groov-pin | 00 |
|
- | ||||
| 007 | NLA | Wire Harness | 00 |
|
- |
