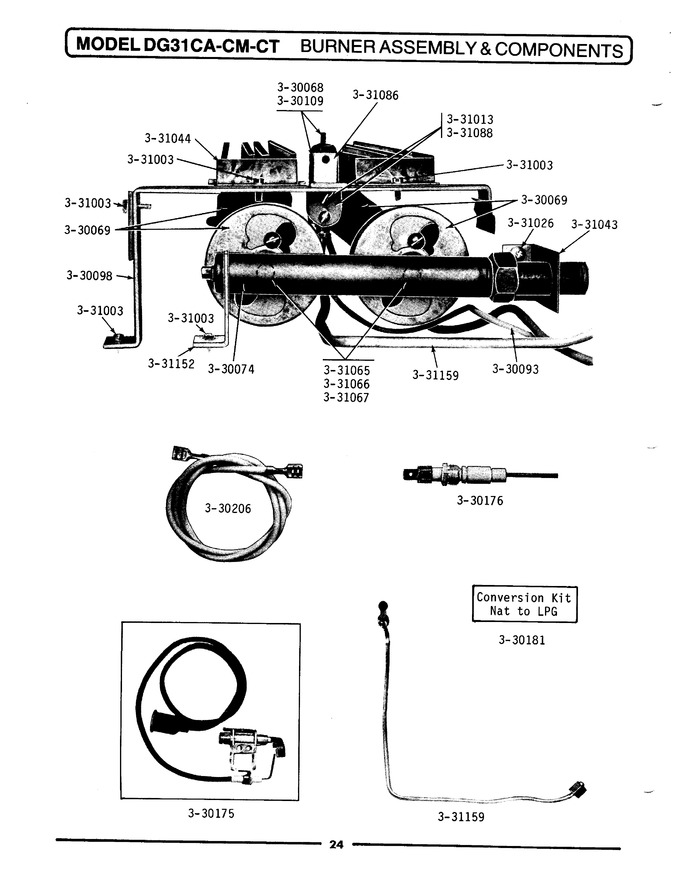

07 - Burner Assembly & Components


08 - Lint Screen-lower Front


09 - Rear View-shield Removed


10 - Drum Pulley & Bearing Support Assembly


11 - Drum Bearing Support Assembly


12 - Motor & Idler Assembly


13 - Ct Control Center Components


14 - Control Center Components


15 - Ticket Receiver Components


16 - Export Parts (240v-50hz)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y330068		Pilot Burner - Nat.	00	Appelez-nous	-
007	Y330175		Pilot Burner	00	Appelez-nous	-
008	Y330176		Sensing Probe	00	Appelez-nous	-
009	330181		Conversion Kit-nat. To Lpg	00	Appelez-nous	-
012	Y330206		Wire For Sensing Probe	00	Appelez-nous	-
013	WP489483		Screw - Burner To Bracket   (Replaces: 331003)	00			$ 9.78
014	331013		Screw - Shield To Support	00	Appelez-nous	-
015	WP90767		Screw-switch Plate To Vault   (Replaces: 331026)	00		Immediately	$ 7.04
021	331086		Shield For Pilot Burner	00	Appelez-nous	-
NI	Y330195		Pilot Orifice - Lpg	00	Appelez-nous	-
NI	NLA		Pilot Shield	00	Appelez-nous	-
