SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Timer Accumulators & Ticket Control


04 - Burner Valve & Controls-upper Comp.


05 - Door Swtch, Temp Cntrl, Terminal Block


06 - Gas Valve


07 - Burner Assembly & Components


08 - Lint Screen-lower Front


09 - Rear View-shield Removed


10 - Drum Pulley & Bearing Support Assembly


11 - Drum Bearing Support Assembly


12 - Motor & Idler Assembly


13 - Ct Control Center Components


14 - Control Center Components


15 - Ticket Receiver Components


16 - Export Parts (240v-50hz)

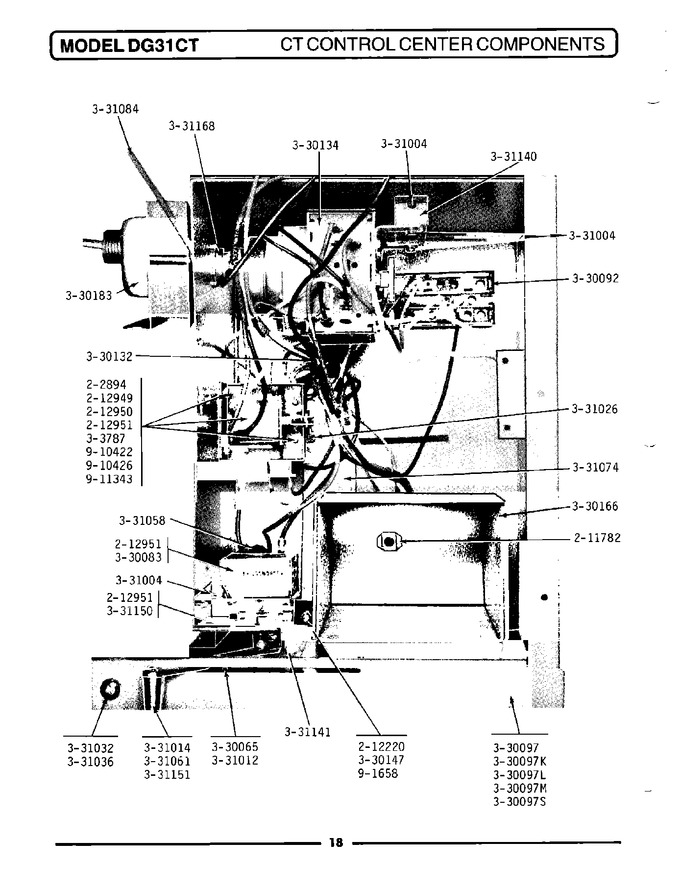

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	202894		Solenoid For Relay Assembly	00			$ 6.95
003	212220		Screw-hex Hd Type B No.6 X 15/16	00	Appelez-nous	-
004	212949		Screw	00	Appelez-nous	-
005	212950		Screw, Relay Switch To Brkt	00			$ 46.94
006	212951		Screw, No.6-32 X 1/4 Inch	00	Appelez-nous	-
007	Y303787		Switch For Relay	00	Appelez-nous	-
009	Y330083		Control, Temperature	00	Appelez-nous	-
010	Y330092		Terminal Block	00	Appelez-nous	-
016	Y330147		Door Switch	00	Appelez-nous	-
018	330183		Transformer	00	Appelez-nous	-
020	WP67006908		Screw-hex Head Slotted 8x3/   (Replaces: 331012)	00		Immediately	$ 7.16
021	WP8281196		Screw - Temp. Knob To Lever   (Replaces: 331014)	00		Immediately	$ 6.47
022	WP90767		Screw-switch Plate To Vault   (Replaces: 331026)	00		Immediately	$ 7.04
023	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
024	331036		Washer-front Panel Screws	00	Appelez-nous	-
025	331058		Grommet-temp. Control Tubin	00	Appelez-nous	-
026	331061		Knob For Temperature Contro	00	Appelez-nous	-
028	331084		Support Rod For Upper Door	00	Appelez-nous	-
032	331151		Lever-temperature Control	00	Appelez-nous	-
NI	NLA		Spacer For Advance Relay	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
