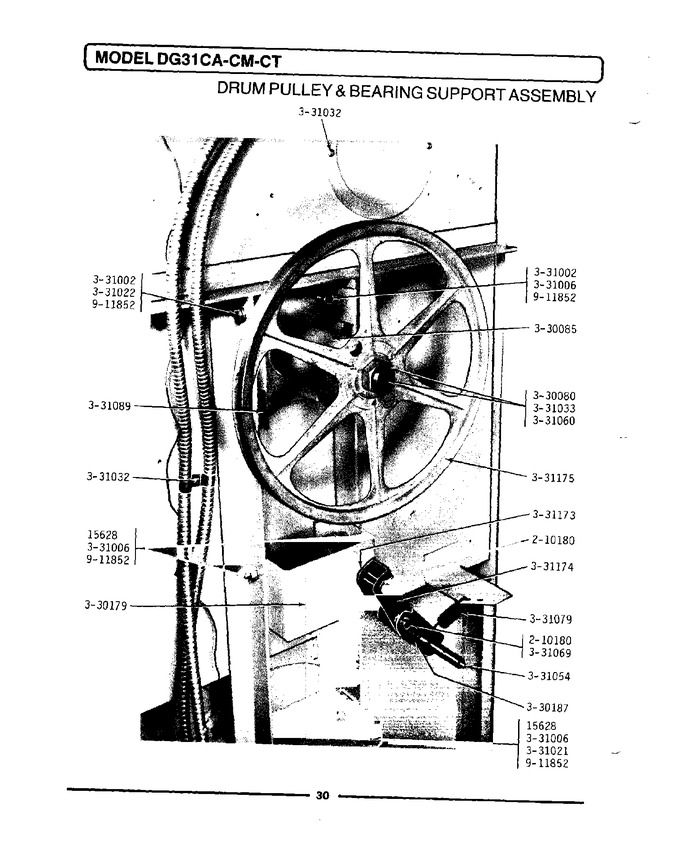

10 - Drum Pulley & Bearing Support Assembly


11 - Drum Bearing Support Assembly


12 - Motor & Idler Assembly


13 - Ct Control Center Components


14 - Control Center Components


15 - Ticket Receiver Components


16 - Export Parts (240v-50hz)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	210180		Retaining Ring	00	Appelez-nous	-
003	Y330080		Spider And Shaft Asy.	00	Appelez-nous	-
004	Y330085		Drum Support Housing	00	Appelez-nous	-
005	Y330179		Bracket And Pin	00	Appelez-nous	-
006	330187		Idler Arm Assembly With Pin	00	Appelez-nous	-
011	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
012	331033		Hex Nut-drum Pulley Shaft	00	Appelez-nous	-
013	331054		Grease Fitting - Pulley Pin	00	Appelez-nous	-
014	331060		Key For Drum	00	Appelez-nous	-
015	331069		Pivot Pin For Tension Arms	00	Appelez-nous	-
016	331079		Tension Spring	00	Appelez-nous	-
017	331089		Shim For Drum Rod	00	Appelez-nous	-
018	331173		Washer	00	Appelez-nous	-
019	331174		Idler Bracket	00	Appelez-nous	-
020	331175		Drum Pulley	00	Appelez-nous	-
021	911852		Washer, Lock (brace)	00	Appelez-nous	-
NI	NLA		Washer For Drum Support	00	Appelez-nous	-
