SELECT A DIAGRAM

01 - Compartment Separator Parts


02 - Fz Door Parts


03 - Liner Parts


04 - Page 4


05 - Page 6


06 - Ref Door Parts


07 - Unit Parts

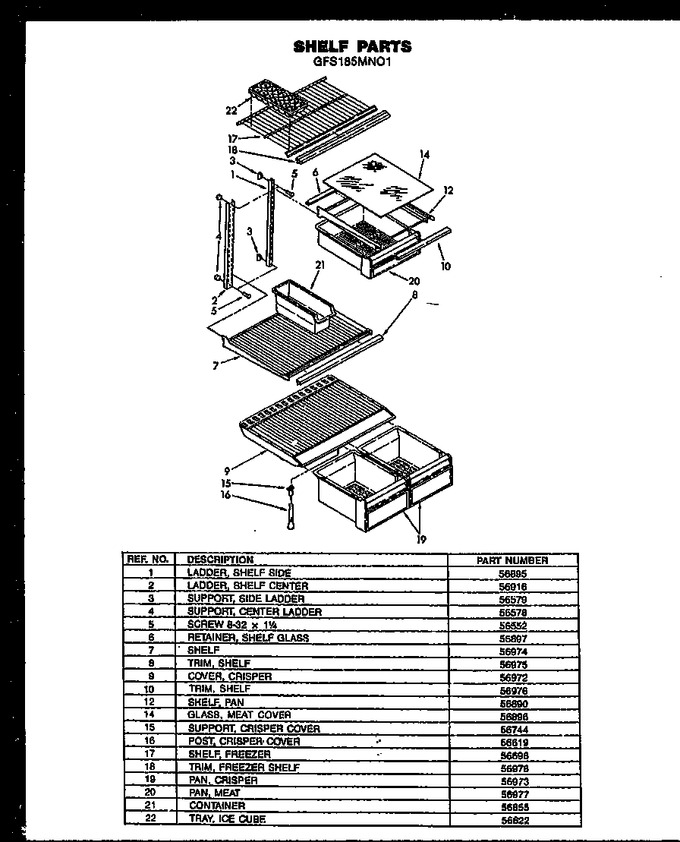

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056895		Ladder, Shelf		Appelez-nous	-
2	Y0056916		Ladder, Shelf, Center		Appelez-nous	-
3	Y0056579		Screw		Appelez-nous	-
4	Y0056578		Screw		Appelez-nous	-
5	56552		Lockwasher		Appelez-nous	-
6	Y0056897		Retainer, Glass Shelf		Appelez-nous	-
7	0056974		Shelf		Appelez-nous	-
8	56975		Assy,conversion Kit		Appelez-nous	-
9	56972		Cover, Crisper		Appelez-nous	-
10	56976		Assy,conversion Kit		Appelez-nous	-
12	56890		Assy,valve-gas-single		Appelez-nous	-
14	0056896		Glass, Meat Cover		Appelez-nous	-
15	0056744		Support, Crisper		Appelez-nous	-
16	0056619		Post, Crisper		Appelez-nous	-
17	Y0056698		Shelf, Freezer		Appelez-nous	-
18	56978		Orifice,outer		Appelez-nous	-
19	0056973		Pan, Crisper		Appelez-nous	-
20	56977		Orifice,inner		Appelez-nous	-
21	56855		Receptacle,12 Circuit		Appelez-nous	-
22	Y0056622		Tray, Ice		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
