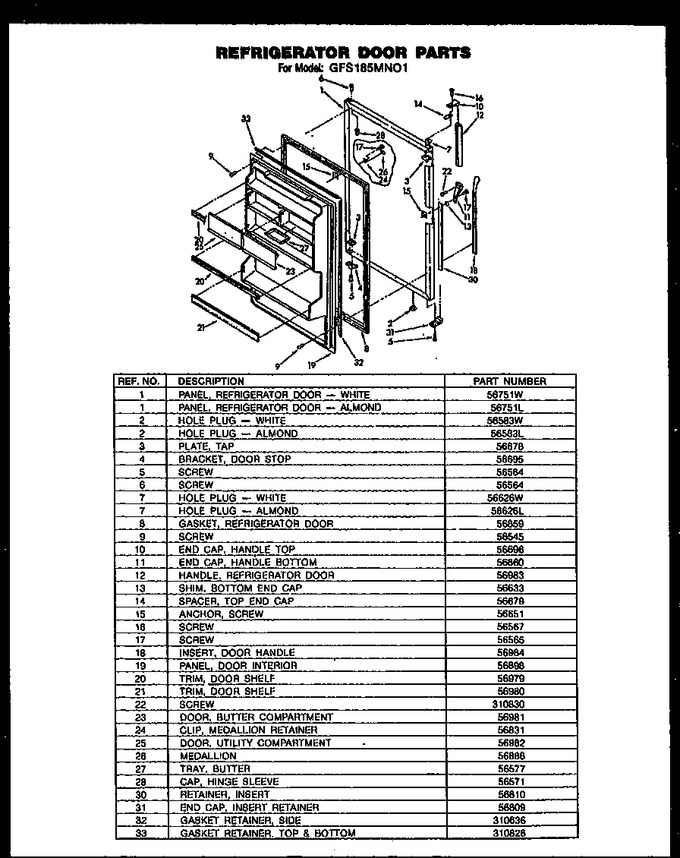

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56751L		Panel, Door - L		Appelez-nous	-
1	56751W		Panel, Door - W		Appelez-nous	-
2	56583L		Hole Plug - Almond		Appelez-nous	-
2	56583W		Hole Plug - White		Appelez-nous	-
3	56678		Plate, Tap		Appelez-nous	-
4	0056695		Bracket, Door Stop		Appelez-nous	-
5	0056564		Screw		Appelez-nous	-
6	0056564		Screw		Appelez-nous	-
7	56626W		Hole Plug - White		Appelez-nous	-
7	56626L		Hole Plug - Almond		Appelez-nous	-
8	Y0056859		Gasket, Refrig. Door		Appelez-nous	-
9	0056545		Screw		Appelez-nous	-
10	0056696		Handle End		Appelez-nous	-
11	0056860		End Cap, Center		Appelez-nous	-
12	Y0056983		Sub 56497, Handle Kit		Appelez-nous	-
13	Y0056633		Shim, Handle		Appelez-nous	-
14	0056679		Spacer, Door Handle		Appelez-nous	-
15	0056651		Anchor, Screw		Appelez-nous	-
16	0056567		Screw		Appelez-nous	-
17	56565		Rivet,pop		Appelez-nous	-
18	0056984		Use 0057002		Appelez-nous	-
19	56898		Panel, Door Interior		Appelez-nous	-
20	56979		Sticker		Appelez-nous	-
21	56980		Sticker		Appelez-nous	-
22	Y0310830		Screw		Appelez-nous	-
23	56981		Sticker		Appelez-nous	-
24	Y0056831		Clip, Medallion		Appelez-nous	-
25	56982		Door, Utility Compartment		Appelez-nous	-
26	56888		Manual, Operation		Appelez-nous	-
27	Y0056577		Tray, Butter		Appelez-nous	-
28	Y0056571		Cap, Hinge Sleeve		Appelez-nous	-
30	Y0056810		Retainer, Insert		Appelez-nous	-
31	0056809		End Cap, Insert Retainer		Appelez-nous	-
32	Y310636		Gasket, Retainer, Side		Appelez-nous	-
33	Y0310826		Gasket Retainer, Top & Bottom		Appelez-nous	-
