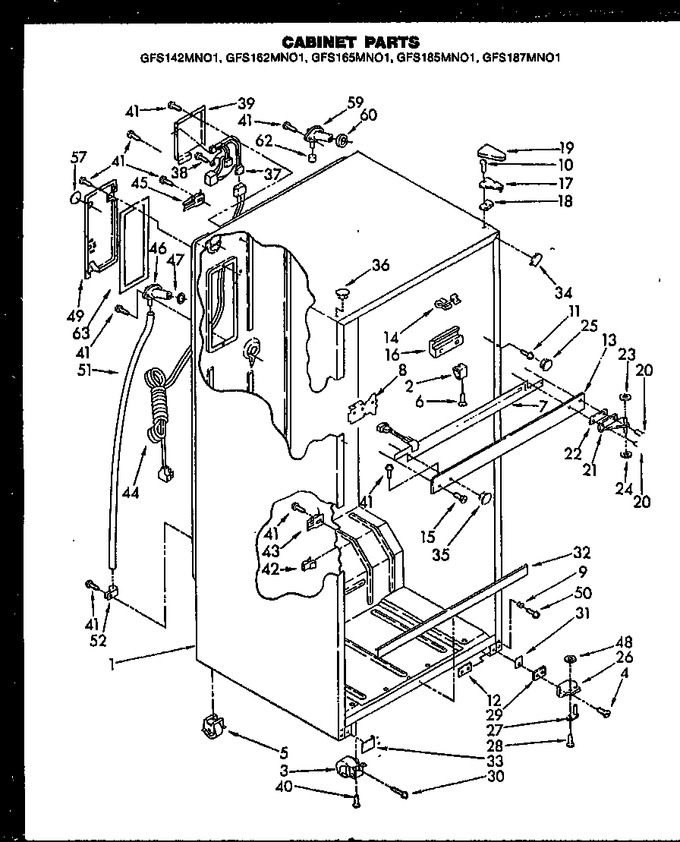

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y0056654		Spacer		Appelez-nous	-
3	56659		Roller, Front		Appelez-nous	-
4	0056535		Screw		Appelez-nous	-
5	Y0056642		Roller		Appelez-nous	-
6	Y0056558		Sub 56560, Screw		Appelez-nous	-
7	56837		Assy, Wiring Harness		Appelez-nous	-
8	56866		Manual,install/opera		Appelez-nous	-
9	Y0056656		Ferrule, Center Rail		Appelez-nous	-
10	0056544		Screw		Appelez-nous	-
11	Y0310629		Screw		Appelez-nous	-
12	56706		Tap Plate		Appelez-nous	-
13	56886L		Center Rail-almond		Appelez-nous	-
13	56886W		Center Rail-white		Appelez-nous	-
14	Y0056582		Trim Clip		Appelez-nous	-
15	Y0056562		Screw		Appelez-nous	-
16	Y0056648		Shim, Center Rail		Appelez-nous	-
17	56736		Assy,lock-complete		Appelez-nous	-
18	Y0056735		Shim, Top Hinge		Appelez-nous	-
19	56624L		Cover, Hinge - Almond		Appelez-nous	-
19	56624W		Cover, Hinge - White		Appelez-nous	-
20	0056535		Screw		Appelez-nous	-
21	0056702		Use 0056613		Appelez-nous	-
22	0056614		Shim, Center Hinge		Appelez-nous	-
23	0056509		Washer		Appelez-nous	-
24	0056517		Sub 56509, Washer		Appelez-nous	-
25	310643W		Hole Plug, White		Appelez-nous	-
25	310643L		Hole Plug, Almond		Appelez-nous	-
26	0310642		Hinge, Door		Appelez-nous	-
27	56610		Manual, Operation		Appelez-nous	-
28	310628		Washer		Appelez-nous	-
29	56660		Shim, Bottom Hinge		Appelez-nous	-
30	0056527		Screw,5/16-24x1 1/2		Appelez-nous	-
31	56663W		Cover, Glider Rail-white		Appelez-nous	-
31	56663L		Cover, Glider Rail-almond		Appelez-nous	-
32	56863L		Cover, Deck Rail - Almond		Appelez-nous	-
32	56863W		Cover, Deck Rail - White		Appelez-nous	-
33	56682W		Cover, Glider Rail-white		Appelez-nous	-
33	56682L		Cover, Glider Rail-almond		Appelez-nous	-
34	56874W		Filler, Corner-white		Appelez-nous	-
34	56874L		Filler, Corner-almond		Appelez-nous	-
35	56950W		Hole Plug-white		Appelez-nous	-
35	56950L		Hole Plug-almond		Appelez-nous	-
36	56625W		Hole Plug - White		Appelez-nous	-
36	56625L		Hole Plug-almond		Appelez-nous	-
37	Y0056666		Wiring Assy., Cabinet		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: Y0056541)				$ 7.16
39	Y0056667		Cover, Wiring		Appelez-nous	-
40	Y0056519		Screw, 10-32 X 1/2		Appelez-nous	-
41	Y0056568		Screw		Appelez-nous	-
42	Y0056649		Clip, Wire Retaining		Appelez-nous	-
43	56591		Thermostat,low Limit		Appelez-nous	-
44	Y0310630		Cord, Power		Appelez-nous	-
45	Y0056644		Clamp		Appelez-nous	-
46	56661		Fitting, Drain		Appelez-nous	-
47	Y0056813		Gasket, Drain Fitting		Appelez-nous	-
48	0310627		Washer, 7/64		Appelez-nous	-
49	Y0056816		Plug Assy.		Appelez-nous	-
50	Y0310626		Screw		Appelez-nous	-
51	0056569		Drain Tube		Appelez-nous	-
52	56576		Switch,temperature Sel		Appelez-nous	-
57	56952		Hole Seal		Appelez-nous	-
59	Y56620		Manual,install/opera		Appelez-nous	-
60	0056814		Seal, Water Tube Fitting		Appelez-nous	-
62	0056512		Cap, Water Tube		Appelez-nous	-
63	Y0056815		Gasket, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
