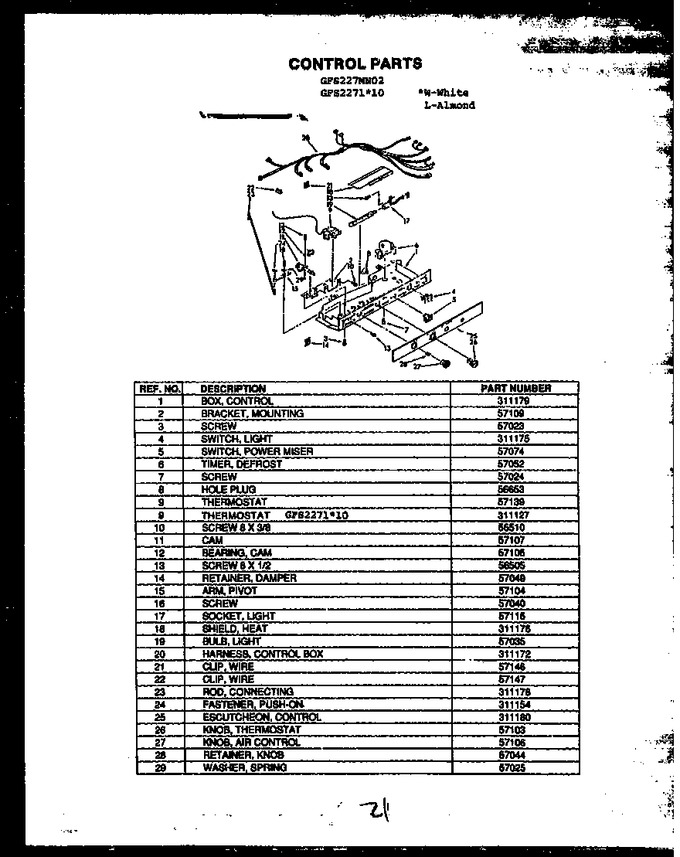

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0311179		Control Box		Appelez-nous	-
2	Y0057109		Bracket, Mtg.		Appelez-nous	-
3	57023		Light,indicator		Appelez-nous	-
4	WP2149705		Sub 56777, Light Switch   (Replaces: Y0311175)			Immediately	$ 36.36
5	Y0057074		Switch, Power Miser		Appelez-nous	-
6	Y0057052		Timer, Defrost (10hr)		Appelez-nous	-
7	61376P		Filter,lint-white W/inst.   (Replaces: 57024)				$ 89.22
8	Y0056653		Hole Plug		Appelez-nous	-
9	Y0057139		Thermostat		Appelez-nous	-
10	Y0056510		Screw, 8 X 3/8		Appelez-nous	-
11	Y0057107		Cam Assy.		Appelez-nous	-
12	57105		Bearing, Cam		Appelez-nous	-
13	56505		Assy,wiring Harness		Appelez-nous	-
14	Y0057049		Retainer, Damper		Appelez-nous	-
15	Y0057104		Arm, Pivot		Appelez-nous	-
16	Y0057040		Screw		Appelez-nous	-
17	0057115		Socket, Light		Appelez-nous	-
18	Y0311176		Heat Shield		Appelez-nous	-
19	8009		Bulb, Light (40 Watt Alum.)   (Replaces: Y0057035)			Immediately	$ 16.80
20	Y0311172		Control Box Harness		Appelez-nous	-
21	0057146		Use M0104104		Appelez-nous	-
22	Y0057147		Clip, Wiring		Appelez-nous	-
23	Y0311178		Connecting Rod		Appelez-nous	-
24	Y0311154		Fastener, Push On		Appelez-nous	-
25	Y0311180		Esctucheon		Appelez-nous	-
26	0057103		Knob, Thermostat		Appelez-nous	-
27	Y0057106		Knob, Air Control		Appelez-nous	-
28	Y0057044		Retainer, Knob		Appelez-nous	-
29	61376P		Lint Filter   (Replaces: 57025)				$ 89.22
