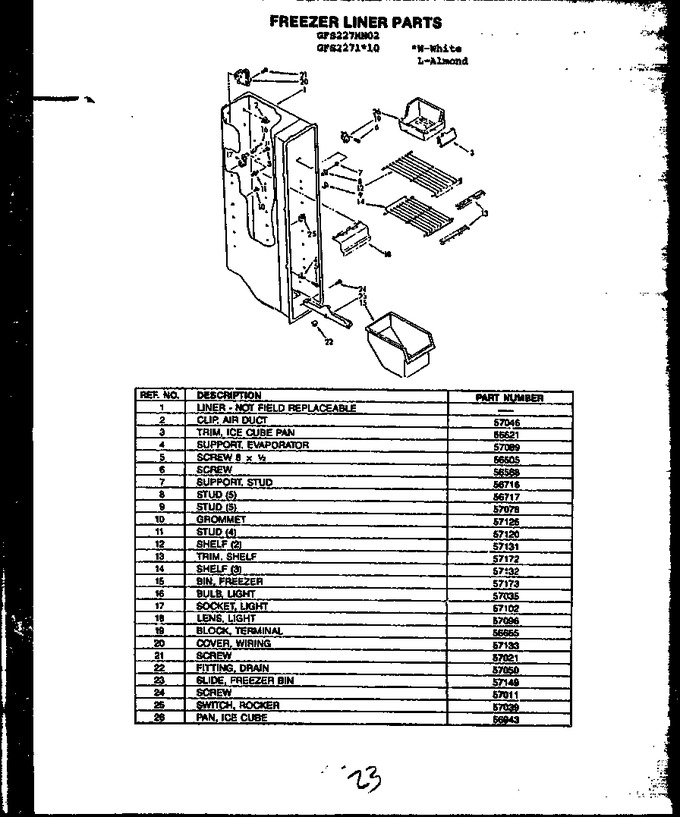

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Liner - Not Field Replaceable |
|
- | |||||
| 2 | Y0057046 | Clip, Air Duct |
|
- | |||||
| 3 | Y0056621 | Trim, Ice Cube Pan |
|
- | |||||
| 4 | Y0057089 | Support, Evaporator |
|
- | |||||
| 5 | 56505 | Assy,wiring Harness |
|
- | |||||
| 6 | Y0056568 | Screw |
|
- | |||||
| 7 | 56716 | Bracket |
|
- | |||||
| 8 | Y0056717 | Stud 4pc Set |
|
- | |||||
| 9 | 0057078 | Stud |
|
- | |||||
| 10 | Y0057125 | Grommet |
|
- | |||||
| 11 | Y0057120 | Stud |
|
- | |||||
| 12 | Y0057131 | Shelf |
|
- | |||||
| 13 | 57172 | Trim, Shelf |
|
- | |||||
| 14 | Y0057132 | Shelf |
|
- | |||||
| 15 | 57173 | Bin, Fz |
|
- | |||||
| 16 | 8009 | Bulb, Light (40 Watt Alum.) (Replaces: Y0057035) |
|
Immediately | $ 16.80 | ||||
| 17 | Y0057102 | Socket Assy., Light |
|
- | |||||
| 18 | Y0057096 | Lens, Freezer Light |
|
- | |||||
| 19 | 0056665 | Terminal Block |
|
- | |||||
| 20 | Y0057133 | Cover, Wiring |
|
- | |||||
| 21 | 0057021 | Sub 56545, Screw |
|
- | |||||
| 22 | Y0057050 | Fitting, Drain |
|
- | |||||
| 23 | Y0057149 | Slide, Freezer Bin |
|
- | |||||
| 24 | Y0057011 | Screw |
|
- | |||||
| 25 | 0057039 | Switch, Rocker |
|
- | |||||
| 26 | 0056943 | Pan, Ice Cube |
|
- |
