Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0311159 Spacer, Capacitor Appelez-nous -
2 Y0056680 Spring, Overload Appelez-nous -
3 Y0057073 Condenser Appelez-nous -
5 0056573 Tube Clamp Appelez-nous -
6 Y0056589 Clip Appelez-nous -
7 0056908 Capacitor Appelez-nous -
8 56681 Spring, Case Retaining Appelez-nous -
9 0056632 Housing Plug Appelez-nous -
10 Y0311167 Housing Plug Appelez-nous -
11 0311165 Sub 56503, Overload Appelez-nous -
12 Y0056529 Screw Appelez-nous -
14 0057066 Sub 56767,overload Appelez-nous -
15 Y0056570 Grommet Appelez-nous -
16 Y0056546 Screw Appelez-nous -
17 0057007 Compressor Appelez-nous -
18 Y0056912 Grommet Appelez-nous -
20 Y0311157 Cover, Capacitor Appelez-nous -
21 Y0056514 Sub 56525, Screw Appelez-nous -
22 Y0056574 Dampener Appelez-nous -
23 Y0057080 Heat Exchanger Appelez-nous -
24 0056521 Sub 56543, Screw Appelez-nous -
27 56505 Assy,wiring Harness Appelez-nous -
29 Y0056506 Speednut Appelez-nous -
30 Y0057071 Guard, Fan Appelez-nous -
31 Y0057079 Evaporator Appelez-nous -
32 57029 Panel,control Appelez-nous -
33 WP4387499 Sub 56496, Bimetal Defrost   (Replaces: Y0311163) Special Order $ 108.77

34 Y0057077 Heater, Defrost Appelez-nous -
35 Y0057006 Connector, Wire Appelez-nous -
37 Y0056730 Fan Blade Appelez-nous -
38 Y0057135 Sub 56854, Sleeve Appelez-nous -
40 56539 Buzzer,230/50 Appelez-nous -
42 Y0057070 Frame Appelez-nous -
44 833697 Sub 56804, Motor, Fan   (Replaces: Y0311168) In-Stock Immediately $ 79.34

45 Y0056791 Rail, Mtg. Appelez-nous -
46 Y0056528 Screw Appelez-nous -
47 0056523 Sub 56545, Screw Appelez-nous -
48 Y0056588 Bracket, Fan Motor Appelez-nous -
49 Y0057069 Baffle, Air Appelez-nous -
51 0056839 Sub 56503,overload Appelez-nous -
52 Y0057008 Overload Appelez-nous -
53 Y0056755 Sub 56840, Cover, Relay Appelez-nous -
54 Y0056646 Strap, Relay Cover Appelez-nous -
55 56502 Spacer,timer Appelez-nous -
56 Y0056520 Screw Appelez-nous -
57 56549 Plate,terminal Bracket Appelez-nous -
59 Y0056550 Washer Appelez-nous -
60 W10843121 Drier   (Replaces: Y0056797) In-Stock Immediately $ 47.31

61 Y0056904 Spring, Overload Appelez-nous -
68 Y0057068 Tray, Evaporator Appelez-nous -
81 56542 Sticker Appelez-nous -
83 56587 Screw,1/4-20 Hex Hd Sh Appelez-nous -
96 Y0057085 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

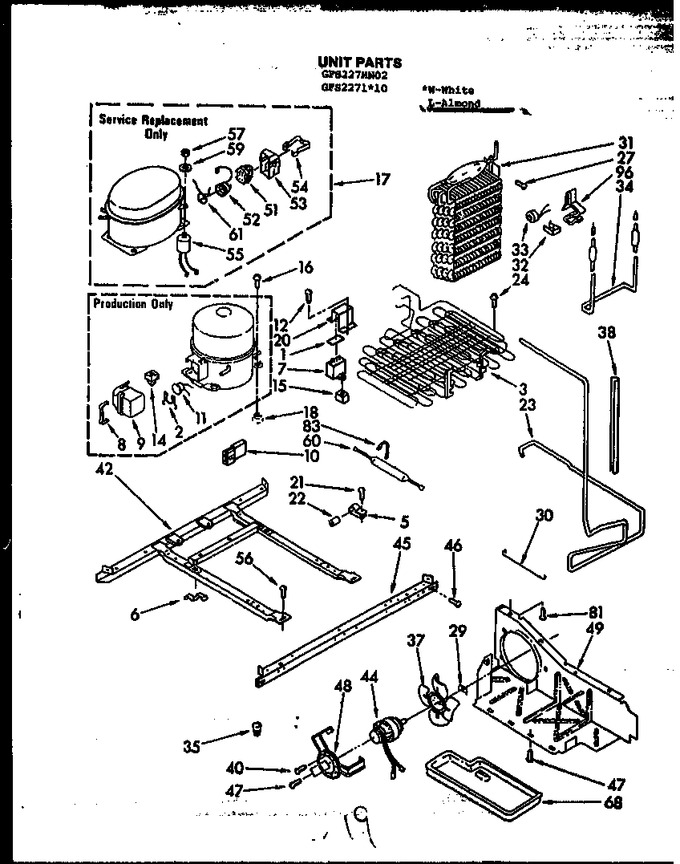

Diagram for GFS227110 (BOM: MN10)
