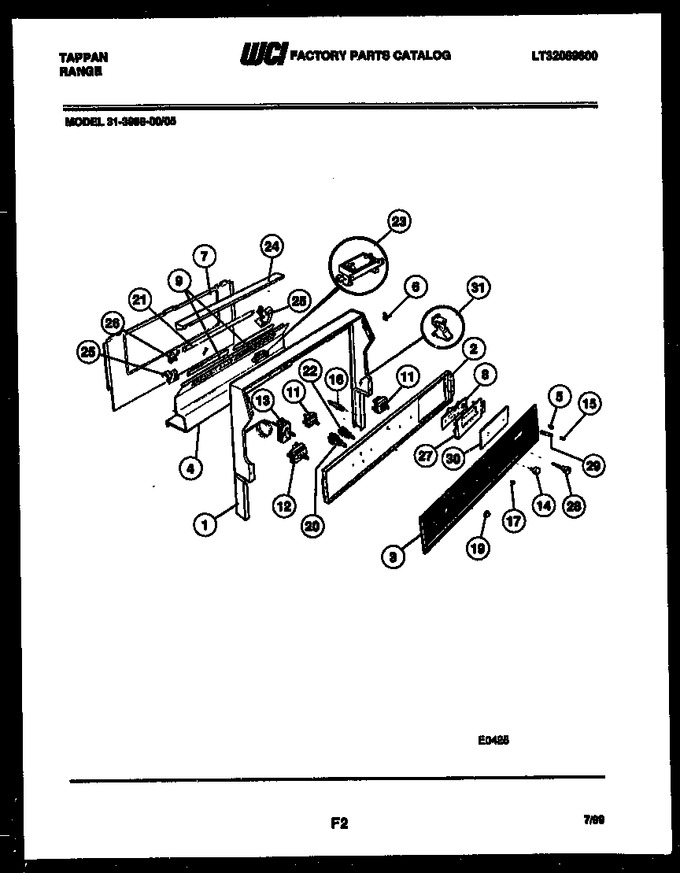

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	3051219		Plate-instr Mtg		Appelez-nous	-
3	3201837		Panel-control		Appelez-nous	-
4	3202790		Trim-low Splasher		Appelez-nous	-
5	3051194		Nut, Decorative (2)		Appelez-nous	-
6	241T049P01		Fastener-glass (2)		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3051117		Clock		Appelez-nous	-
9	3131145		Glass, Work Light (2)		Appelez-nous	-
11	699T015P02		Switch-top (3)		Appelez-nous	-
12	3201732		Switch-selector		Appelez-nous	-
13	3201733		Thermostat		Appelez-nous	-
14	3051487		Knob-top Element (3)		Appelez-nous	-
15	358T206P01		Knob, Clock		Appelez-nous	-
16	318T023P11		Indicator-light Su		Appelez-nous	-
16	3201726		Ind - Lt Clean - Blue		Appelez-nous	-
17	342T017P01		Jewel-ind Lens (4)		Appelez-nous	-
19	045T071P01		Bezel, Switch		Appelez-nous	-
20	695T211P02		Switch - Oven Light		Appelez-nous	-
21	3131275		Bulb-fluorescent				$ 49.40
22	3051312		Switch - Fluor Light		Appelez-nous	-
23	3051115		Ballast		Appelez-nous	-
24	3201738		Shield-fluor Light		Appelez-nous	-
25	3131576		Bracket-fluor Light Mounting Lh		Appelez-nous	-
26	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
27	3131556		Plate, Timer Mounting		Appelez-nous	-
28	3131730		Button-elec Clock (4)		Appelez-nous	-
29	3131508		Shaft-elec Clock		Appelez-nous	-
30	3051161		Glass-timer		Appelez-nous	-
31	3131237		Support Backguard		Appelez-nous	-
11A	3051318		Thermostat-top Temp		Appelez-nous	-
14A	3201798		Knob-selector		Appelez-nous	-
14B	3201797		Knob-thermostat		Appelez-nous	-
14C	3015335		Knob-top Temperature		Appelez-nous	-
16A	3201728		Ind - Lt Lock - Red		Appelez-nous	-
16A	3201727		Indicator-light Oven-black		Appelez-nous	-
17A	3015224		Retainer Lens (4) (non-illustrated)		Appelez-nous	-
25A	3131577		Bracket-fluor Light Mounting Rh		Appelez-nous	-
26A	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
