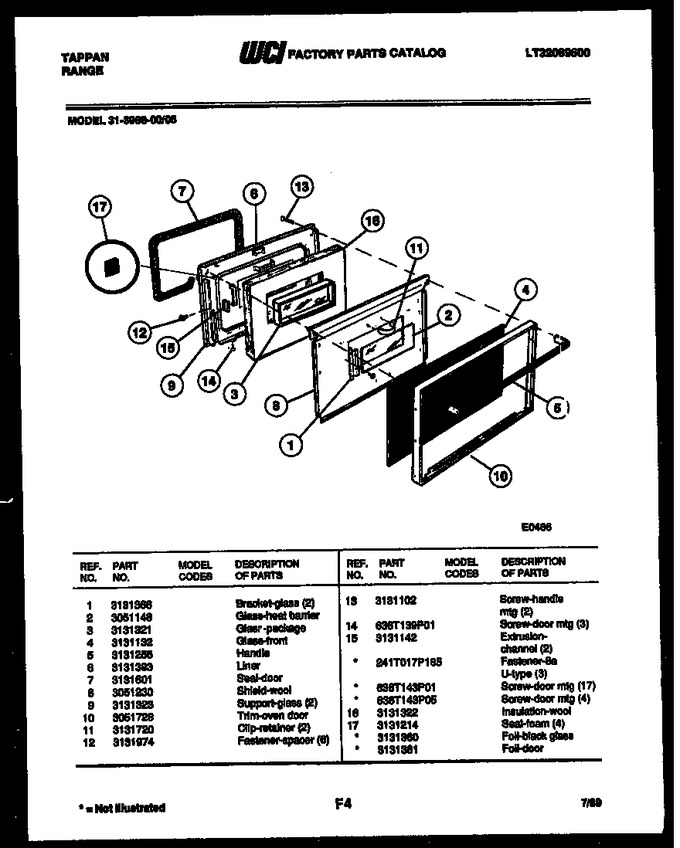

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Bracket, Glass (2)		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	3131321		Glass, Package		Appelez-nous	-
4	3131132		Glass, Front		Appelez-nous	-
5	3131256		Handle		Appelez-nous	-
6	3131393		Liner		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3051230		Shield, Wool		Appelez-nous	-
9	3131323		Support, Glass (2)		Appelez-nous	-
10	3051728		Trim, Oven Door		Appelez-nous	-
11	3131720		Clip, Retainer (2)		Appelez-nous	-
12	3131974		Fastener, Spacer (6)		Appelez-nous	-
13	3131102		Screw-handle Mtg (2)		Appelez-nous	-
14	636T139P01		Screw-door Mtg. (3)		Appelez-nous	-
15	3131142		Extrusion Channel (2)		Appelez-nous	-
16	3131322		Insulation, Wool		Appelez-nous	-
17	3131214		Seal, Foam (4)		Appelez-nous	-
*26694	3131360		Foil-black Glass		Appelez-nous	-
*26694	3131361		Foil-door		Appelez-nous	-
15A	241T017P185		Fastener, 8 Au Type (3) (non-illustrated)		Appelez-nous	-
15B	636T143P05		Screw-door Mtg (4) (non-illustrated)		Appelez-nous	-
15B	636T143P01		Screw		Appelez-nous	-
