New Model Search:

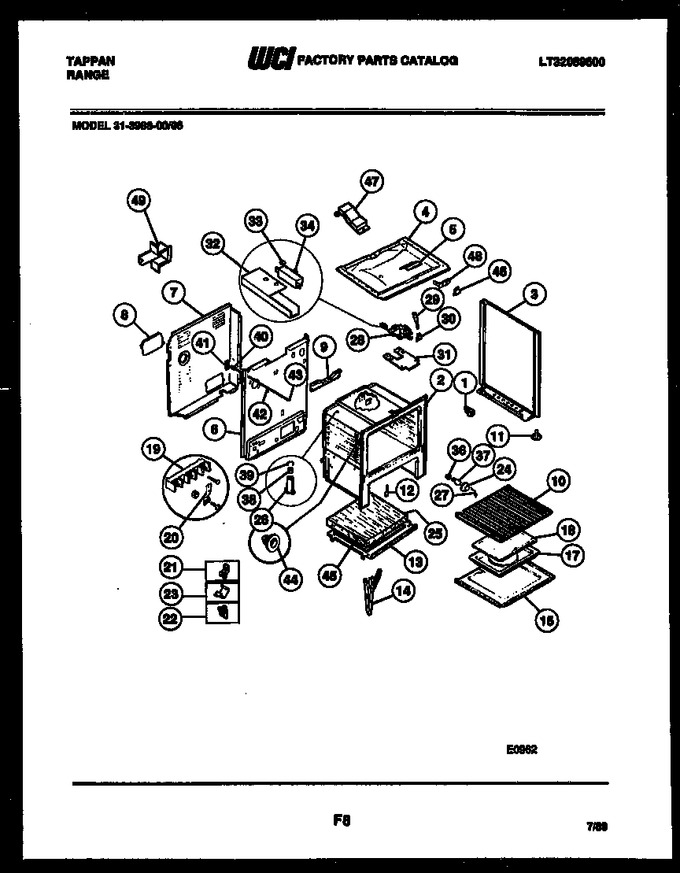

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 665T188P02 | Spacer - B/s (8) |
|
- | |||||
| 3 | 3200792 | Panel B/s Lh-white |
|
- | |||||
| 3 | 3200793 | Panel B/s Lh-almd |
|
- | |||||
| 3 | 3200794 | Panel B/s Lh-wheat |
|
- | |||||
| 3 | 3201000 | Panel B/s Lh-black |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 3203397 | Screw-leveling (4) |
|
- | |||||
| 12 | 3131570 | Cover-hng Cutout (1) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 3051414 | Channel-dr Hinge (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 539T010F01-86 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 19 | 709T031P01 | Terminal Block |
|
- | |||||
| 20 | 711T048P01 | Ground Strap |
|
- | |||||
| 21 | 3011805 | Clip-therm Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 25 | 3200847 | Insulation, Bottom |
|
- | |||||
| 26 | 3051345 | Tube-oven Vent |
|
- | |||||
| 27 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 28 | 3015361 | Latch Door |
|
- | |||||
| 29 | 296T101F06-08 | Handle-latch |
|
- | |||||
| 30 | 358T158S02 | Knob, Latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield, Bi Metal Catch |
|
- | |||||
| 33 | 241T001P01 | Fastener, Push On (3) |
|
- | |||||
| 34 | 3131672 | Switch, Latching |
|
- | |||||
| 36 | 662T042P01 | Socket-oven Light |
|
- | |||||
| 37 | 374T108P05 | Light Bulb-oven |
|
- | |||||
| 38 | 244T041P01 | Filter, Catalyst |
|
- | |||||
| 39 | 612T079P01 | Retainer, Catalyst |
|
- | |||||
| 40 | 695T128P04 | Switch, Door |
|
- | |||||
| 41 | 3131289 | Bracket, Light Switch |
|
- | |||||
| 42 | 3051495 | Rod, Light |
|
- | |||||
| 43 | 174T329P01 | Cover, Rod |
|
- | |||||
| 44 | 102T044P02 | Button-remote Light Switch |
|
- | |||||
| 45 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 46 | 3205821 | Clip-retainer (2) (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 47 | 3051254 | Flue Box |
|
- | |||||
| 48 | 3051242 | Angle-closure Lh |
|
- | |||||
| 49 | 3203582 | Shield-rear Wall |
|
- | |||||
| *26706 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| 27A | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 27B | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27C | 636T163P01 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 27D | 479T069P41 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 30A | 636T144P01 | Screw, Set, Latch Knob (non-illustrated) |
|
- | |||||
| 3A | 3201001 | Panel B/s Rh-black |
|
- | |||||
| 3A | 3200791 | Panel B/s Rh-wheat |
|
- | |||||
| 3A | 3200790 | Panel B/s Rh-almd |
|
- | |||||
| 3A | 3200789 | Panel B/s Rh-white |
|
- | |||||
| 45A | 3131304 | Insulation-top (non-illustrated) |
|
- | |||||
| 47A | 3015337 | Gasket-vent (non-illustrated) |
|
- | |||||
| 48A | 3051243 | Angle-closure Rh |
|
- | |||||
| 48B | 3200833 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 48C | 3200834 | Shield-heat B/s (2) (non-illustrated) |
|
- | |||||
| 48D | 3200846 | Fastener-edge Mounting (2) (non-illustrated) |
|
- | |||||
| 48E | 3934056 | Anti-tip Kit (non-illustrated) |
|
- |
