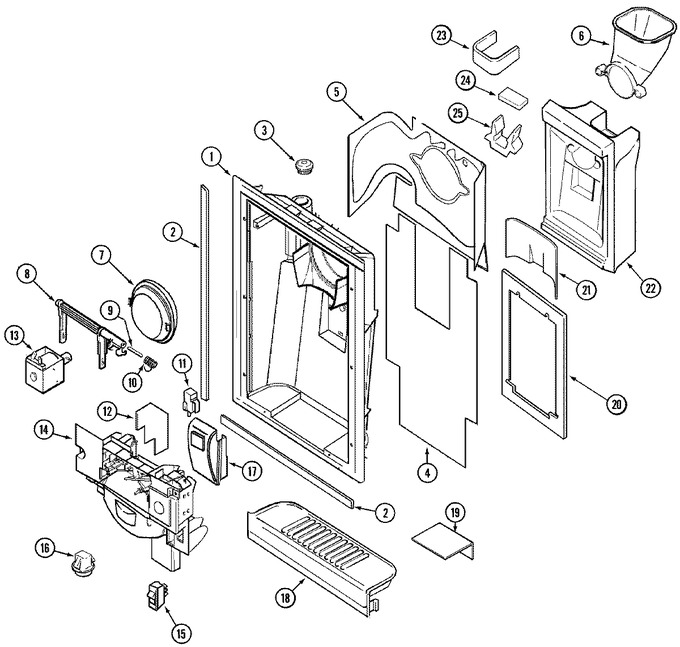

GS2124IDEW | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	61003307	Screw	10	Appelez-nous	-
1	12001816	Kit, Fountain Housing (wht)	10	Appelez-nous	-
1	489392	Screw (Replaces: 415013-35)	10			$ 12.02
2	61003286	Tape (1ft.)	10			$ 7.25
3	61003568	Grommet, Water Tube	10	Appelez-nous	-
4	61003304	Foil, Ftn. Back	10			$ 5.59
5	61003613	Heater, Fountain	10	Appelez-nous	-
6	Y00000000	See Note (ice Chute Not Available Must Order Fountain Housing Kit 12001816)	10	Appelez-nous	-
6	489392	Screw (Replaces: 415013-35)	10			$ 12.02
7	12001992	Kit, Fountain Ice Door (230v)	10			$ 146.77
8	Y00000000	See Note (strike Not Available Must Order Ice Door Kit 12001992)	10	Appelez-nous	-
9	WP9705445	Pin, Roll (Replaces: 61003303)	10			$ 6.26
10	61004388	Spring, Ftn. Return	10			$ 7.72
11	61003124	Switch, Limit	10	Appelez-nous	-
11	415041-35	Screw	10	Appelez-nous	-
12	61003621	Board, Delay	10	Appelez-nous	-
13	Y00000000	See Note (solenoid Not Available Must Order Ice Door Kit 12001992)	10	Appelez-nous	-
13	WP488234	Screw (Replaces: 61003297)	10			$ 6.07
14	61003615	Bracket, Fountain (wht)	10	Appelez-nous	-
14	489392	Screw (Replaces: 415013-35)	10			$ 12.02
15	61003289	Plug, Hole (fills Switch Hole)	10	Appelez-nous	-
16	61003569	Plug, Lampholder	10	Appelez-nous	-
17	61003802	Pad, Actuator (gry)	10	Appelez-nous	-
18	61003309	Grill (wht)	10			$ 30.31
19	53808-38	Foil, Fountain Front	10	Appelez-nous	-
20	61003339	Insulation	10			$ 5.27
21	61003340	Insulation	10			$ 20.38
22	Y00000000	See Note (ftn. Insulation Not Available Must Order Ftn. Housing Kit 12001816)	10	Appelez-nous	-
23	61003342	Insulation	10	Appelez-nous	-
24	61003343	Insulation	10			$ 5.51
25	61003308	Insulation	10			$ 26.45
26	61003570	Wire Harness, Ftn. Slide	10	Appelez-nous	-
