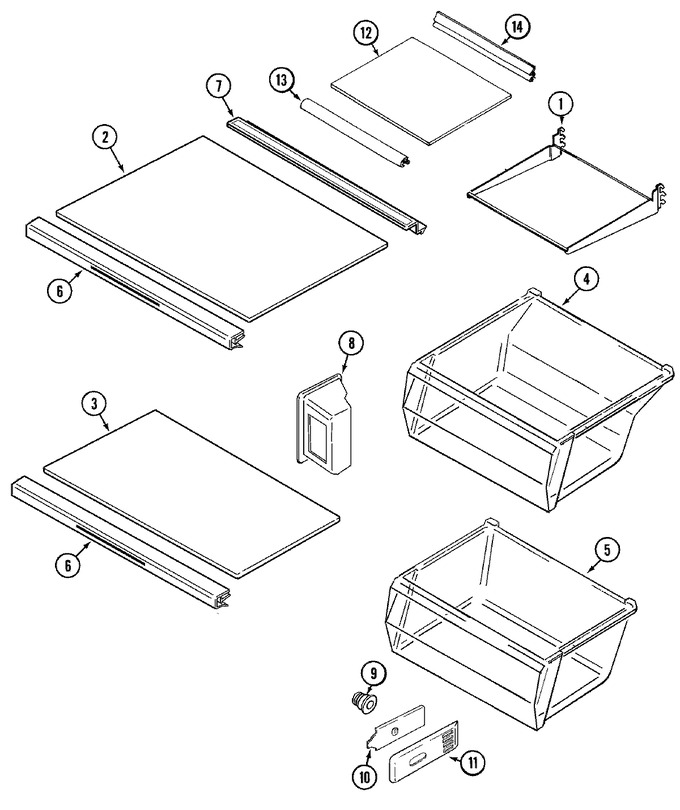

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004615		Frame, Shelf	10	Appelez-nous	-
2	61003160		Glass, Crisper Shelf	10	Appelez-nous	-
3	61003157		Glass, Meat Shelf	10	Appelez-nous	-
4	61003543		Pan, Crisper	10	Appelez-nous	-
5	61003544		Pan, Meat	10	Appelez-nous	-
6	61003162		Trim	10	Appelez-nous	-
7	61003161		Seal, Crisper Shelf (rear)	10	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61004287)	10			$ 80.27
9	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-
10	61003249		Slide, Control (meat)	10	Appelez-nous	-
11	61003250		Retainer, Control Slide	10	Appelez-nous	-
12	61004614		Glass, Shelf	10	Appelez-nous	-
13	61004613		Trim, Shelf	10	Appelez-nous	-
14	61004603		Trim, Shelf (rear)	10	Appelez-nous	-
