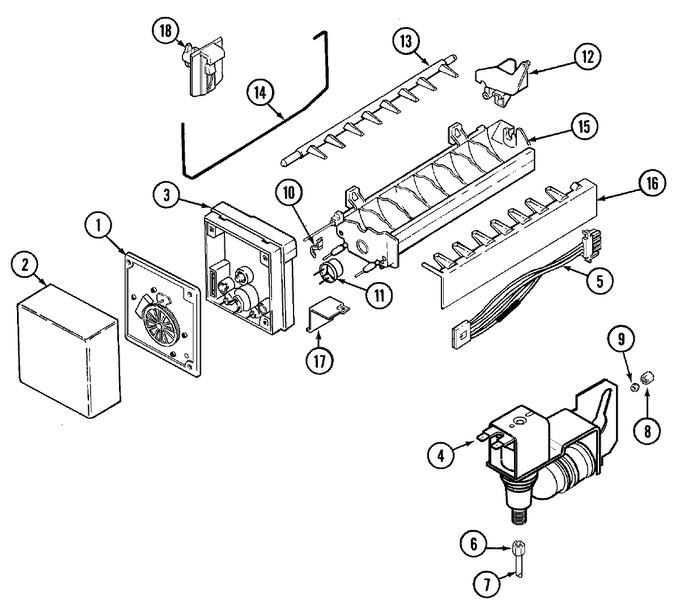

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 1 | WPW10190972 | Module, Ice Maker (Replaces: 61001014) | 10 |
|
$ 152.14 | ||||
| 2 | 61004608 | Cover, Ice Maker | 10 |
|
- | ||||
| 3 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 7.07 | |||
| 3 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 10 |
|
$ 94.11 | ||||
| 4 | WP8281227 | Screw (Replaces: 61002819) | 10 |
|
$ 9.40 | ||||
| 4 | 61003574 | Valve, Water | 10 |
|
- | ||||
| 5 | 61003619 | Wire Harness, Ice Maker | 10 |
|
- | ||||
| 6 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) | 10 |
|
$ 9.87 | ||||
| 7 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 10 |
|
$ 11.19 | ||||
| 8 | WP245183 | Nut, Brass (1/4``) (Replaces: 69432-1) | 10 |
|
$ 7.01 | ||||
| 9 | WP487627 | Sleeve, Brass (Replaces: 69431-1) | 10 |
|
$ 10.05 | ||||
| 10 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 9.95 | ||||
| 11 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 11 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
Immediately | $ 98.26 | |||
| 12 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 46.07 | ||||
| 13 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 75.24 | ||||
| 14 | W11807379 | Arm, Sensor (Replaces: 70142-1) | 10 |
|
Immediately | $ 54.18 | |||
| 15 | Y06100047 | Mold & Heater Assy. | 10 |
|
- | ||||
| 16 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 77.45 | ||||
| 17 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 9.79 | ||||
| 17 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 83.70 | ||||
| 18 | 61004851 | Support, Ice Maker | 10 |
|
- |
