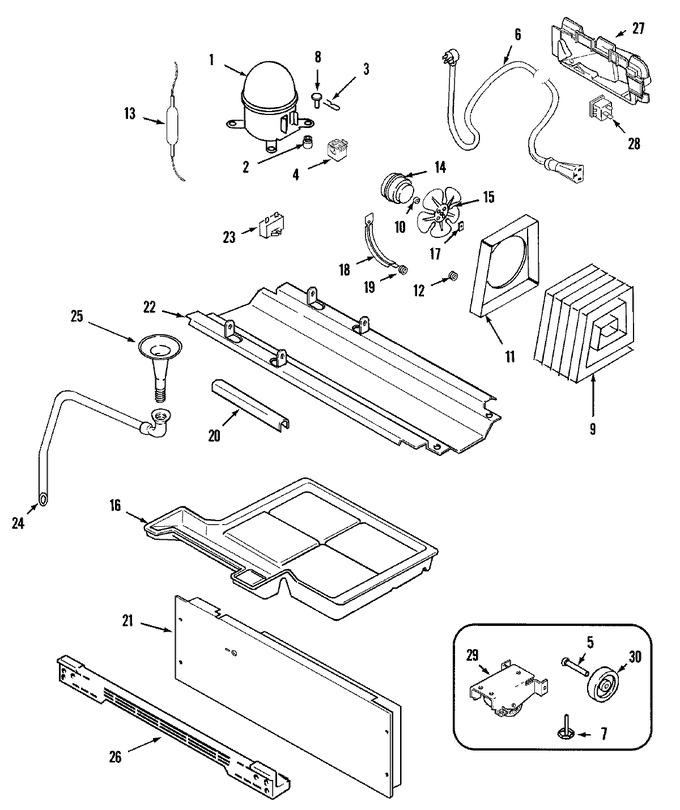

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12001961 | Kit, Compressor | 16 |
|
- | ||||
| 1 | 12002170 | Kit, Compressor | 26 |
|
- | ||||
| 1 | 61005615 | Wire Harness, Compressor | 16 |
|
- | ||||
| 2 | WP4387558 | Grommet, Compressor (Replaces: 61005241) | 16 |
|
$ 6.26 | ||||
| 3 | 61003099 | Clip, Compressor | 16 |
|
- | ||||
| 4 | 12002784 | Relay/overload Assy. (Replaces: 61005616) | 16 |
|
$ 152.64 | ||||
| 4 | 61005620 | Clip, Relay/overload Assy.-na | 16 |
|
- | ||||
| 5 | 61002104 | Pin, Wheel | 16 |
|
$ 5.70 | ||||
| 6 | 61006053 | Cord, Power (europe) | 21 |
|
- | ||||
| 6 | 61004874 | Cord, Power (europe) | 16 |
|
- | ||||
| 7 | 69810-1 | Cap, Leveling Leg | 16 |
|
- | ||||
| 7 | 61002014 | Leg, Leveling | 16 |
|
- | ||||
| 8 | 52656-2 | Plug, Compressor | 16 |
|
- | ||||
| 9 | 61003130 | Condenser | 16 |
|
- | ||||
| 10 | 61001686 | Washer, Fan Blade | 16 |
|
- | ||||
| 11 | 61001941 | Shroud, Condenser | 16 |
|
- | ||||
| 12 | 61002033 | Grommet, Condenser Tubing | 16 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 16 |
|
Immediately | $ 27.70 | |||
| 14 | 61002084 | Motor, Condenser Fan | 16 |
|
- | ||||
| 14 | 65275-33 | Screw | 16 |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60683-1) | 16 |
|
$ 114.00 | ||||
| 16 | 61002649 | Pan, Drain | 16 |
|
- | ||||
| 16 | 65275-5 | Screw | 16 |
|
- | ||||
| 17 | WP486692 | Clip, Fan Blade (Replaces: 19914) | 16 |
|
$ 7.04 | ||||
| 18 | 61001414 | Bracket, Fan Motor | 16 |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | 16 |
|
- | ||||
| 20 | 61001974 | Isolator, Condenser | 16 |
|
- | ||||
| 21 | 61003596 | Cover, Compressor Compartment | 16 |
|
- | ||||
| 21 | 65275-5 | Screw | 16 |
|
- | ||||
| 22 | 61005262 | Pan, Compressor Mtg. | 16 |
|
- | ||||
| 22 | WP67006715 | Screw (Replaces: 61002407) | 16 |
|
$ 6.47 | ||||
| 23 | WP489478 | Screw (Replaces: 400017-1) | 16 |
|
$ 6.98 | ||||
| 23 | WP2201147 | Capacitor, Run (Replaces: 61004637) | 16 |
|
$ 116.07 | ||||
| 24 | 61003133 | Hose, Drain | 16 |
|
$ 56.20 | ||||
| 24 | 53516-9 | Clamp | 16 |
|
- | ||||
| 25 | 61004751 | Tube, Drain | 16 |
|
- | ||||
| 26 | W11233072 | Screw (Replaces: 400016-1) | 16 |
|
Immediately | $ 12.62 | |||
| 26 | 61004261 | Kickplate (wht) | 16 |
|
- | ||||
| 27 | 61004875 | Box, Inlet | 16 |
|
- | ||||
| 27 | WP489069 | Screw (Replaces: 65275-50) | 16 |
|
Immediately | $ 7.07 | |||
| 27 | 61004485 | Screw | 16 |
|
- | ||||
| 28 | 61004876 | Inlet, Power Cord | 16 |
|
- | ||||
| 29 | WP489478 | Screw (Replaces: 400017-1) | 16 |
|
$ 6.98 | ||||
| 29 | 61005219 | Wheel Assy. (frt) | 16 |
|
- | ||||
| 30 | WP61003826 | Wheel (rear) (Replaces: 61003826) | 16 |
|
$ 6.71 | ||||
| 31 | 12001549 | Yoder Loop Htr(230v)21,23,25 | 16 |
|
- | ||||
| 32 | 61004281 | Manual, Use & Care | 16 |
|
- | ||||
| 33 | 16009103 | Manual, Service Sxs Apd | 16 |
|
- |
