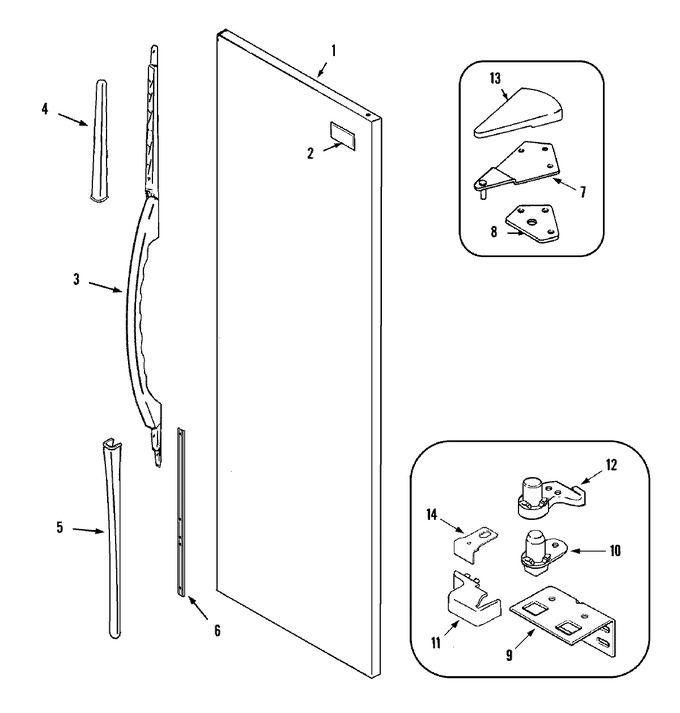

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005794		Panel, F.f. Door (wht)	20	Appelez-nous	-
2	66981-5		Bezel, Nameplate (wht)	20	Appelez-nous	-
3	61005394		Screw	20			$ 6.24
3	61005786		Screw	20	Appelez-nous	-
3	61005609		Handle, Door (wht)	20			$ 90.31
4	61005445		Extension, Handle (upr-wht)	20	Appelez-nous	-
5	61005525		Extension, Handle (lwr-wht)	20	Appelez-nous	-
6	61005394		Screw	20			$ 6.24
6	61005606		Cleat, Handle Extension	20	Appelez-nous	-
7	61001971		Hinge, Upper	20	Appelez-nous	-
7	WP3-24838-048		Screw   (Replaces: 65275-52)	20			$ 7.00
8	61001922		Shim, Upper Hinge	20			$ 0.71
9	61001918		Hinge, Lower (wht)	20			$ 38.93
9	3400112		Screw   (Replaces: 61003128)	20			$ 62.96
10	61003174		Pin, Lower Hinge	20			$ 6.22
11	61003220		Cover, Lower Hinge (wht)	20			$ 15.37
12	W10856122		Screw   (Replaces: 61002180)	20			$ 6.98
12	61005724		Closer, Door (w/cup)	20			$ 23.79
13	61002076		Cover, Upper Hinge (wht)	20	Appelez-nous	-
14	61003273		Stop, Door	20	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	20			$ 6.98
