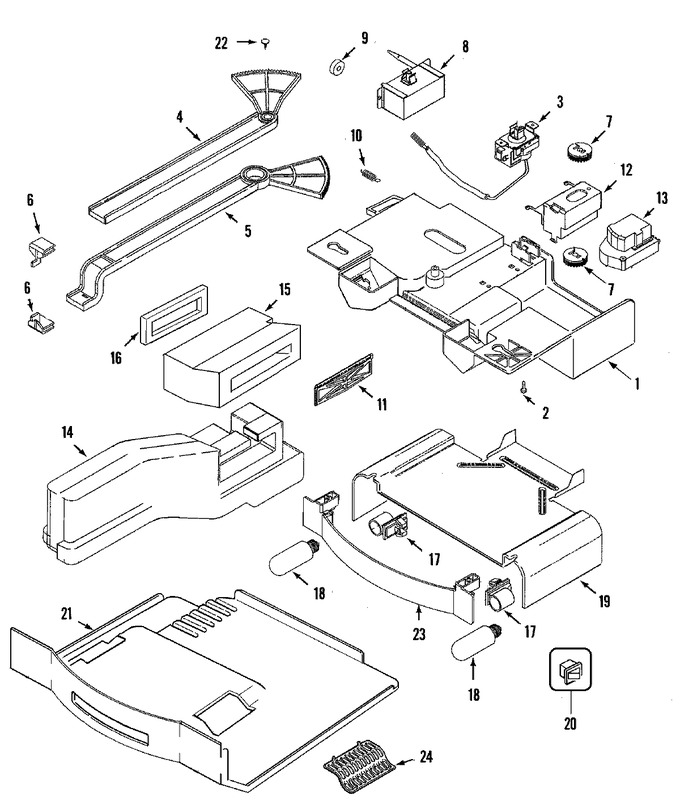

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61005043 | Housing Assy., Auto Damper | 10 |
|
- | ||||
| 1 | 61003228 | Foil, Heat Shield | 10 |
|
- | ||||
| 1 | 61005971 | Housing Assy., Auto Damper | 19 |
|
$ 111.97 | ||||
| 1 | 400031-1 | Screw | 10 |
|
- | ||||
| 2 | 400019-1 | Screw | 10 |
|
- | ||||
| 2 | 67149-1 | Support, Divider | 10 |
|
- | ||||
| 3 | 61003624 | Control Assy., Temperature | 10 |
|
- | ||||
| 3 | W11233072 | Screw (Replaces: 400016-1) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 61003287 | Rod, Damper Control | 10 |
|
- | ||||
| 5 | 61003293 | Rod, Temp. Control | 10 |
|
- | ||||
| 6 | 61003283 | End Cap, Control Rod | 10 |
|
- | ||||
| 7 | 61003305 | Gear, Control Slide | 10 |
|
- | ||||
| 8 | 61005044 | Damper, Auto | 10 |
|
- | ||||
| 8 | 61003359 | Screw | 10 |
|
- | ||||
| 9 | 61003358 | Washer, Damper Rod | 10 |
|
- | ||||
| 10 | 61003141 | Spring, Damper Door | 10 |
|
- | ||||
| 11 | 61003235 | Door, Damper | 10 |
|
- | ||||
| 12 | 61003315 | Support, Temp. Control | 10 |
|
- | ||||
| 13 | 61003601 | Timer, Defrost | 10 |
|
$ 84.25 | ||||
| 13 | 61005951 | Screw | 19 |
|
- | ||||
| 13 | 405007-1 | Screw | 10 |
|
- | ||||
| 14 | 61003229 | Insulation, Discharge (lt) | 10 |
|
$ 26.18 | ||||
| 14 | 61003230 | Insulation, Discharge (rt) | 10 |
|
- | ||||
| 14 | 61005972 | Insulation, Discharge (rt) | 19 |
|
$ 31.95 | ||||
| 15 | 61005075 | Seal, Tunnel (double-sided) | 10 |
|
- | ||||
| 15 | 61005994 | Tunnel, Control Housing | 19 |
|
- | ||||
| 15 | 61003231 | Tunnel, Control Housing | 10 |
|
- | ||||
| 16 | 61003819 | Seal, Tunnel | 10 |
|
- | ||||
| 17 | 70458-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 17 | 61005805 | Adapter, Receptacle | 19 |
|
- | ||||
| 17 | 61005900 | Receptacle, Bulb | 19 |
|
- | ||||
| 17 | 61003727 | Clip, Receptacle | 10 |
|
- | ||||
| 17 | 61003726 | Adapter, Lampholder | 10 |
|
- | ||||
| 18 | 61003355 | Barrier, Foil (rt) | 10 |
|
- | ||||
| 18 | 61005975 | Foil (lt) | 19 |
|
- | ||||
| 18 | 61005974 | Foil (rt) | 19 |
|
$ 16.34 | ||||
| 18 | 61003354 | Barrier, Foil (lt) | 10 |
|
- | ||||
| 18 | W11618980 | Bulb, Light (Replaces: 61003602) | 10 |
|
$ 19.22 | ||||
| 19 | 61003238 | Shield, Heat | 10 |
|
- | ||||
| 19 | 61005976 | Shield, Heat | 19 |
|
- | ||||
| 20 | 61006157 | Switch, Light | 25 |
|
$ 19.62 | ||||
| 20 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 21 | 61003268 | Shield, Light | 10 |
|
- | ||||
| 22 | 61003316 | Retainer, Control Rod | 10 |
|
- | ||||
| 23 | 61003372 | Panel, Control | 10 |
|
- | ||||
| 23 | 400031-1 | Screw | 10 |
|
- | ||||
| 24 | 61004590 | Grill, Light | 10 |
|
- | ||||
| 25 | 61003603 | Wire Harness, Controls | 10 |
|
- | ||||
| 25 | 61005995 | Wire Harness, Controls | 19 |
|
- | ||||
| 26 | Y00000000 | See Note (frz/ff Wire Harness Is Not Replaceable. It Is Part Of The Main Harness) | 19 |
|
- | ||||
| 26 | 61003604 | Wire Harness, Frz./f.f. | 10 |
|
- |
