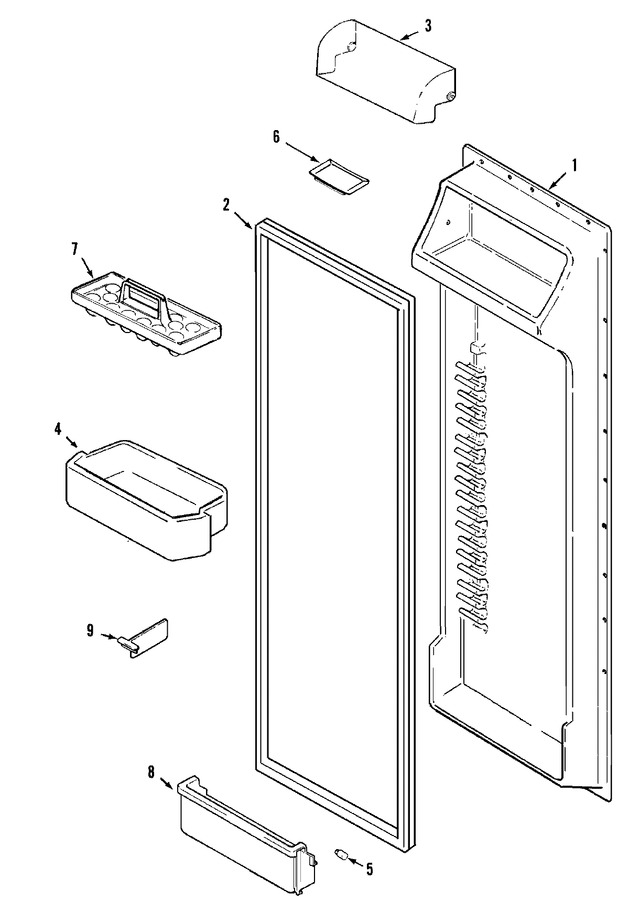

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005931		Liner, F.f. Door	14			$ 239.98
1	61005388		Screw	14			$ 11.43
2	61005943		Seal, F.f. Door (wht)	14			$ 170.06
3	61003995		Door, Dairy	14	Appelez-nous	-
4	61005209		Shelf, Pick-off	14	Appelez-nous	-
5	61005929		Stop, Bucket	14			$ 5.84
6	29936-2		Tray, Butter	14	Appelez-nous	-
7	60066-1		Tray, Egg	14	Appelez-nous	-
8	61004427		Bucket, Tip-out	14	Appelez-nous	-
