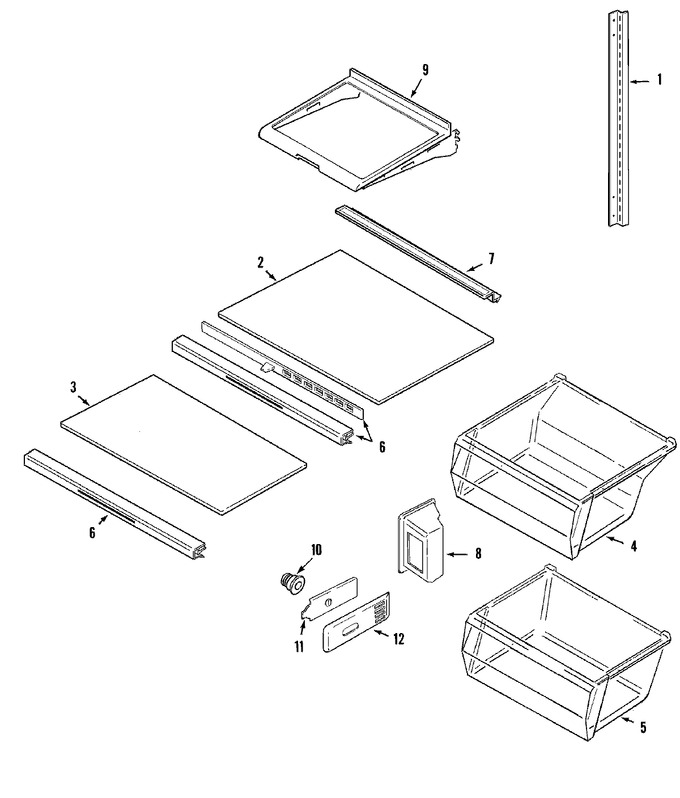

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 400017-1)	14			$ 6.98
1	61003240		Rail, Shelf Support	14	Appelez-nous	-
2	61003822		Glass, Crisper Shelf (upr)	14	Appelez-nous	-
3	61003823		Glass, Meat Shelf	14	Appelez-nous	-
4	61004058		Pan, Crisper	14	Appelez-nous	-
5	61004060		Pan, Meat	14	Appelez-nous	-
6	61003879		Trim, Front Shelf Glass----na	14	Appelez-nous	-
6	61003880		Trim, Front Shelf Glass (cris)	14	Appelez-nous	-
7	61003895		Seal,crisper Shelf----na	14	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61006081)	14			$ 80.27
9	61003868		Shelf, Spillproof	14	Appelez-nous	-
10	53726-2		Tunnel, Air (meat)	14	Appelez-nous	-
11	61003249		Slide, Control (meat)	14	Appelez-nous	-
12	61003250		Retainer, Control Slide	14	Appelez-nous	-
