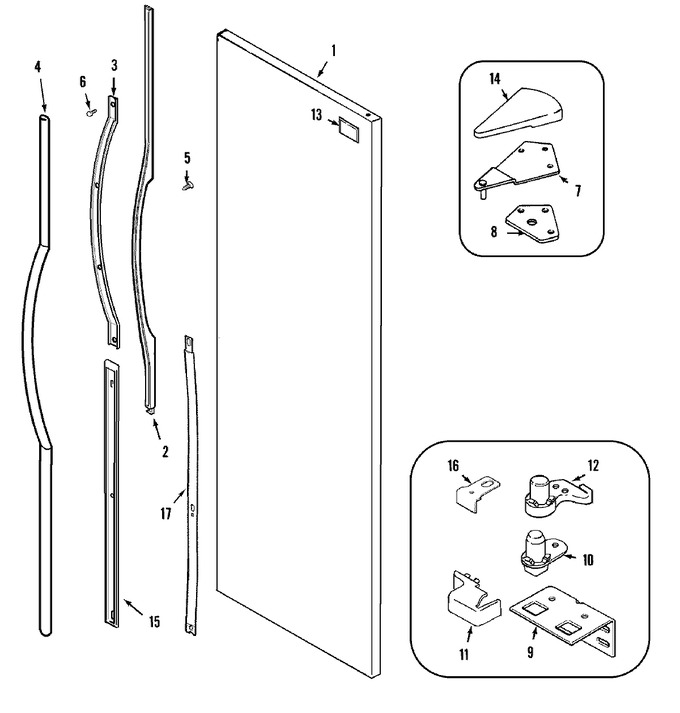

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005788		Panel, F.f. Door (bsq)	14	Appelez-nous	-
2	61004760		Handle, Door (bsq)	14	Appelez-nous	-
3	61004761		Frame, Handle	14	Appelez-nous	-
4	61004762		Insert, Handle (bsq)	14	Appelez-nous	-
5	61003351		Screw, Handle To Frame	14	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	14			$ 6.98
7	WP3-24838-048		Screw   (Replaces: 61004763)	14			$ 7.00
7	61004896		Hinge, Upper	14			$ 36.71
8	61001922		Shim, Upper Hinge	14			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	14			$ 62.96
9	61006113		Hinge, Lower (zinc)	14			$ 60.50
10	61003174		Pin, Lower Hinge	14			$ 6.22
11	61004765		Cover, Lower Hinge (bsq)	14	Appelez-nous	-
12	61005724		Closer, Door (w/cup)	14			$ 23.79
12	W10856122		Screw   (Replaces: 61002180)	14			$ 6.98
13	61004894		Bezel, Nameplate (bsq)	14	Appelez-nous	-
14	WP8281196		Screw, Cover   (Replaces: 61004641)	14		Immediately	$ 6.47
14	61004766		Cover, Upper Hinge (bsq)	14	Appelez-nous	-
15	W10856122		Screw   (Replaces: 61002180)	14			$ 6.98
15	61004767		Trim, Handle Ext. (lwr-bsq)	14	Appelez-nous	-
16	W10856122		Screw   (Replaces: 61002180)	14			$ 6.98
16	61003273		Stop, Door	14	Appelez-nous	-
17	61004781		Retainer, Handle	14	Appelez-nous	-
