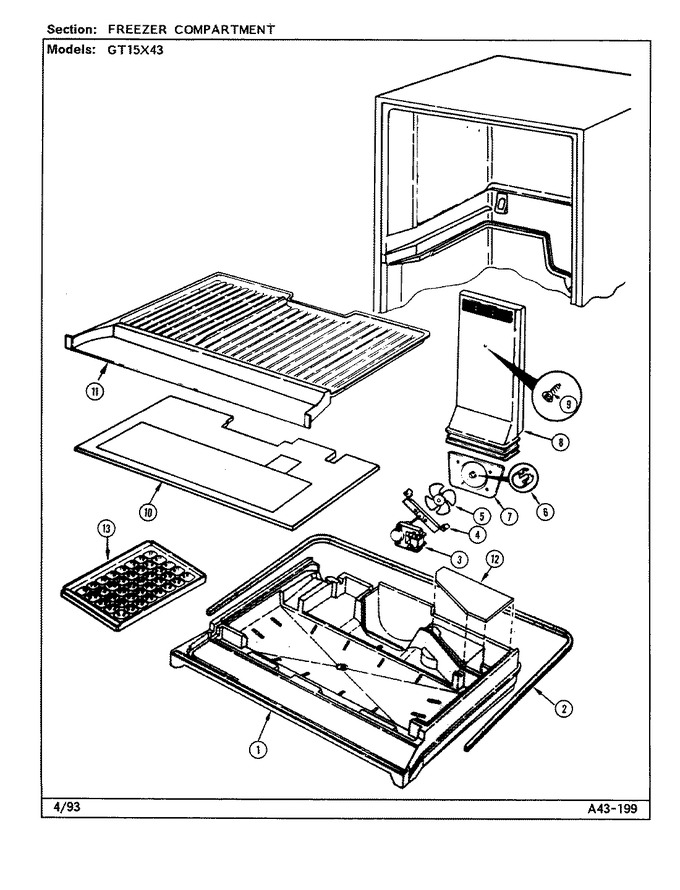

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69401-1 | Tray, Styrofoam Mullion |
|
- | |||||
| 1 | 69562-1 | Seal, Mullion Tray (front) |
|
- | |||||
| 2 | 69414-1 | Seal, Mullion Tray |
|
- | |||||
| 2 | 68946-7 | Seal |
|
- | |||||
| 3 | 69106-3 | Motor, Evaporator Fan |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 5 | 69107-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-90 | Washer |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66325-34 | Seal, Air Tunnel----na |
|
- | |||||
| 8 | 68592-1 | Tunnel, Air |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 11 | 69395-1 | Bottom, Frz. |
|
- | |||||
| 11 | 68946-1 | Seal |
|
- | |||||
| 12 | 66480-4 | Cover, Plenum |
|
- | |||||
| 13 | 69413-2 | Magnet |
|
- | |||||
| 13 | WP841180A | Tray, Ice (Replaces: 59281-2) |
|
Immediately | $ 41.00 | ||||
| 13 | 70146-2 | Plug Button |
|
- |
